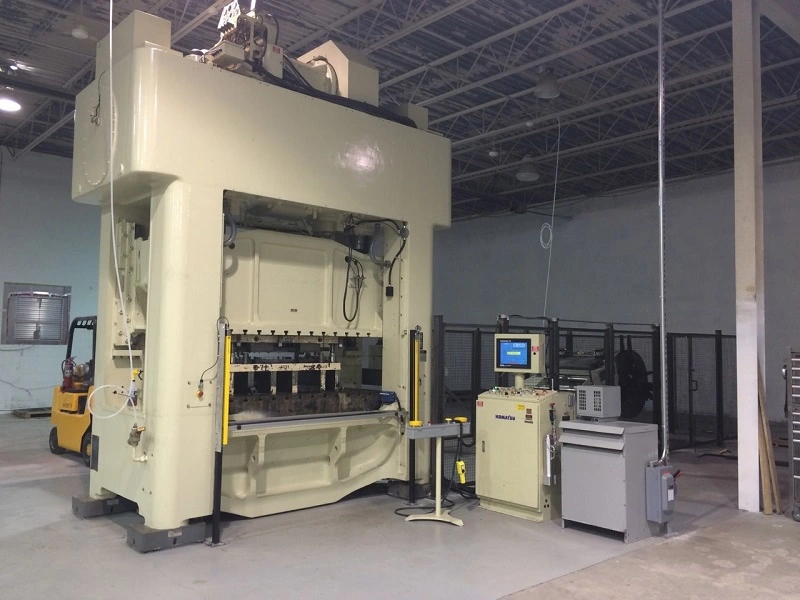

USED 1997 KOMATSU L2M300-3BM
Overview
Specs
Maximum Capacity: 300 ton
Ram Speed: 50 120 SPM
Slide Stroke: 125mm 4.92
Die Height: (SDAU) 550mm 21.65
Slide Adjustment: 100mm 3.94
Slide Dimensions: (LRxFB) 2150x900mm 84.6x35.4
Bolster Dimensions: (LRxFBxThicness) 2150x1000x250mm 84.6x39.3x9.8
Allowable Upper Die Weight: 3307lbs
Equipped With

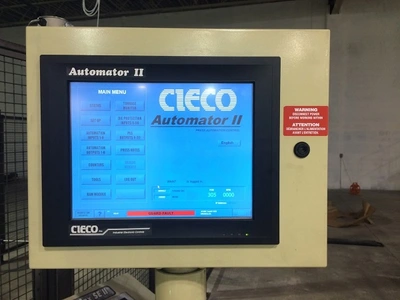

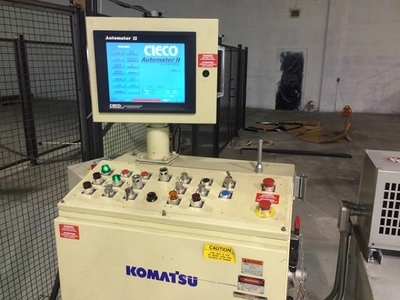

AUTOMATOR II METAL STAMPING PRESS AUTOMATION CONTROL:
15" color touch screen
Standard 8 programmable inputs (up to 56 optional)
Standard 8 Programmable Outputs (up to 32 optional)
Versatile Rack System
Field Upgradable; add options now or later
On Screen Diagnostics
Heavy duty industrial Resolver

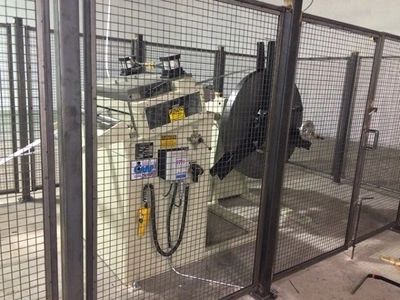

CWP Feed Line Specs:
Straightener:
Model: COILPAK-30
Max Coil WT. 6000lbs
Max Coil O.D. 60
STK. Width: 30
STK. THK. IN MILD STEEL: 0.021-0.125
Speed: 50 FPM
Power: 230VAC, 1P, 60hz
Machine Direction: R-L

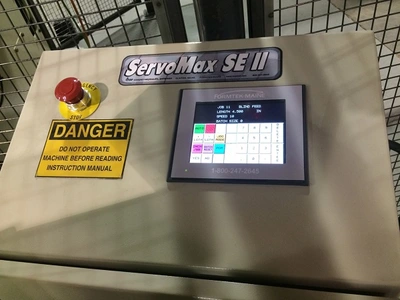

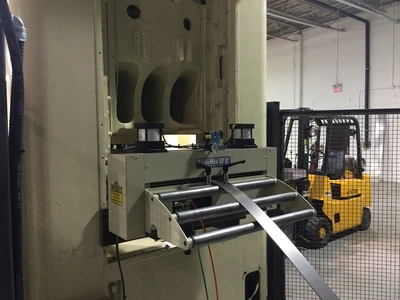

Feeder:
Model: SMX SE1130
STK. Width: 30
