Punching Pressure: 88 Tons
Max Capacity (At 1" Diameter): 7/8"
Max Capacity (At 2" Diameter): 7/16"
Max Punching Height (Channel Flange): 10"
Throat Depth: 20"
Max Stroke Length: 4"
Ram Speed: 28 SPM
Ram Motor: 7.5 HP
Table Size: 27-1/2" x 27-1/2"
Working Height Up To Die: 41-1/4"
Machine Dimensions: 77"L x 40"W x 87"H
Machine Weight: 4,600 LBS

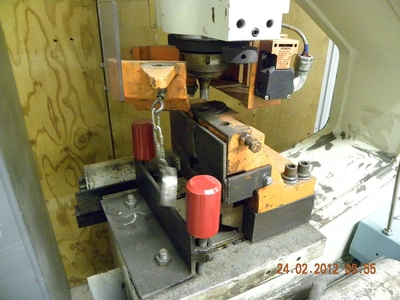

Goose Neck Die
Raiser Block<
Specially Altered Stripper Set
Fabmaster #26 Punch (9/16" Short)
Fabmaster #62 Die (OD Bevel)
Fabmaster #26 Punch (11/16" OD Short)
Fabmaster #62 Die (23/32" OD Bevel)
Fabmaster #26 Punch (13/16" OD Short)
Fabmaster #62 Die (27/32" OD Bevel)
