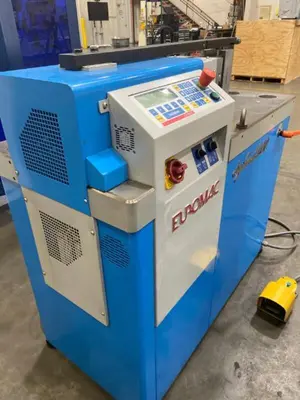

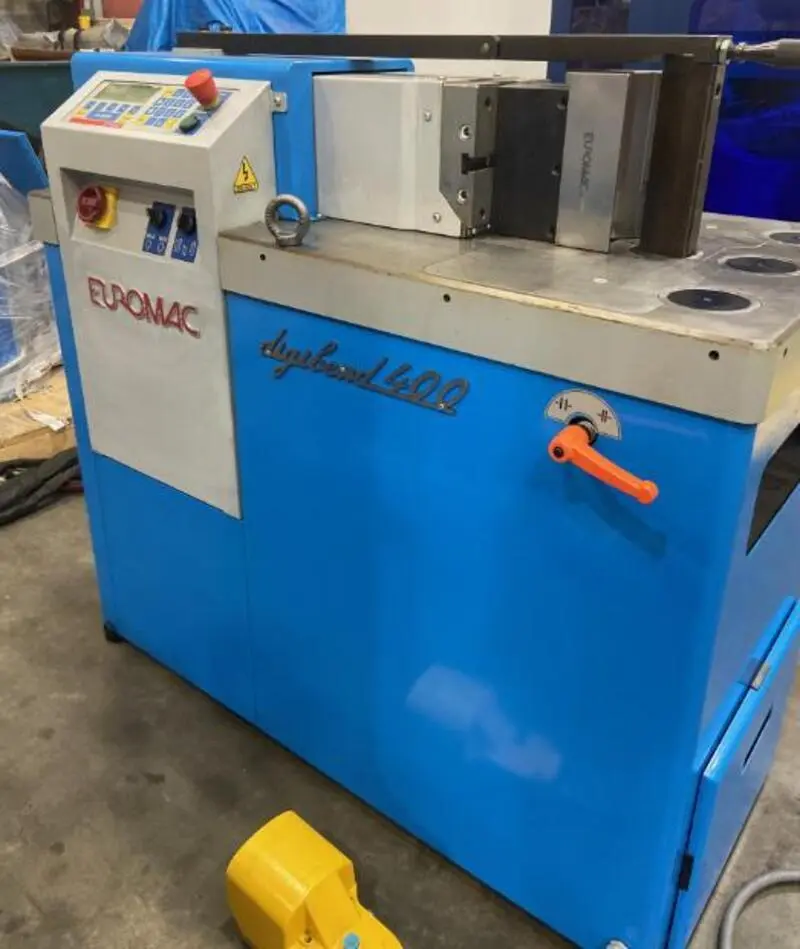

USED 2016 EUROMAC DIGIBEND
Overview
Specs
Hydraulic Pressure: 40 Tons
Length of Stroke: 9.64"
Maximum Working Speed: .393" - .944" (per sec)
Minimum Working Speed: .250" (per sec)
Return Speed: 2.36" (per sec)
Main Ram Motor: 5.5 HP
Bending Height (Std.): 7.87"
Extra High Bending: 15.74"
Working Height: 36.43"
Working Table Dimensions: 22.83" x 49.6"
Machine Dimensions: 26.8"l x 46.1"w x 44.5"h
Machine Weight: 3,400 LBS
Equipped With
Remote Foot Pedal Switch
24" Manual Back Gauge (rod w/ graduated scale)
50" CNC Programmable Back Gauge
4BG SD Memory Card
Instruction Manual
4 Way V Die (629", .866", 1.37", 1.96")
Die Extension (3.34 "x 7.48")
Pin Z#BPT041 (dia 3.150" X 8" W/ 3 Bending inserts)
Pin Bending Punch (30 deg 3.15" x 7.87")
Anti-Deflection Bar (up to 7.87" height)
