Table Size: 24.8" x 20.9"
Maximum Workpiece Weight: 1168 lbs.
Maximum Workpiece Dimensions: 31.52" x 22.65" x 8.47"
Distance from Table to Platen: 35.4"
Table Resolution: .000004"
X Axis Travel: 13.79"
Y Axis Travel: 9.85"
Z Axis Travel: 8.67"
U / V Axis Travel: 1.250"
Maximum Taper at 4": 15 deg. @ 3.93"
Rapid Traverse Rate: 51.18 IPM
Table Height from Floor: 35.43"
Tank Capacity: 400 liters
Power Supply: 50 AMPS / 220 Volts
Wire Diameter Range: 0.2" - 0.3"
Machine Dimensions W x D x H: 50.1"x73.1"x71"
Machine Weight: 4,312 lbs.
Mitsubishi 32 Bit Control
Dielectic Tank
50 Amp Power Supply
RS 232 Port Interface
3.5" Floppy Disk Drive Interface

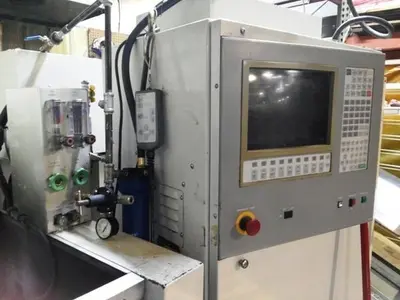

14" Color CRT Display
All Available Manuals
