Table Size: 9" x 42"
Longitudinal Table Travel: 28"
Saddle Cross Travel: 12"
Head Vertical Travel on Column: 16"
Power Quill Travel: 5"
Spindle Motor Power: 3 HP
Distance From Spindle Center to Column Ways: 15-1/2"
Max. Distance Spindle Nose to Table Top: 19"
Min. Distance Spindle Nose to Table Top: 3"
Spindle Speed, Variable: 60 - 4500 RPM
Spindle Nose Taper: #30
Milling Head Tilts, Left to Right: +/- 90 Deg.
Overall Machine Size: 60" x 50" x 80" High
Machine Weight, Approx.: 3,000 Lbs.

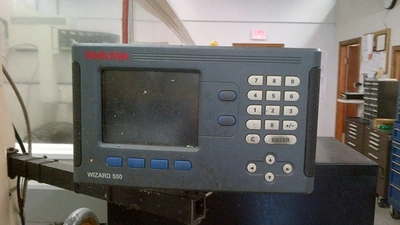

Anilam WIZARD 550 DRO
Servo Type 150 Longitudinal Power Feed Unit

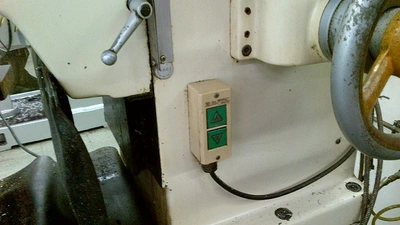

Power Head Elevation
One Shot Lube System
Meehanite Casting
Chrome Ways
