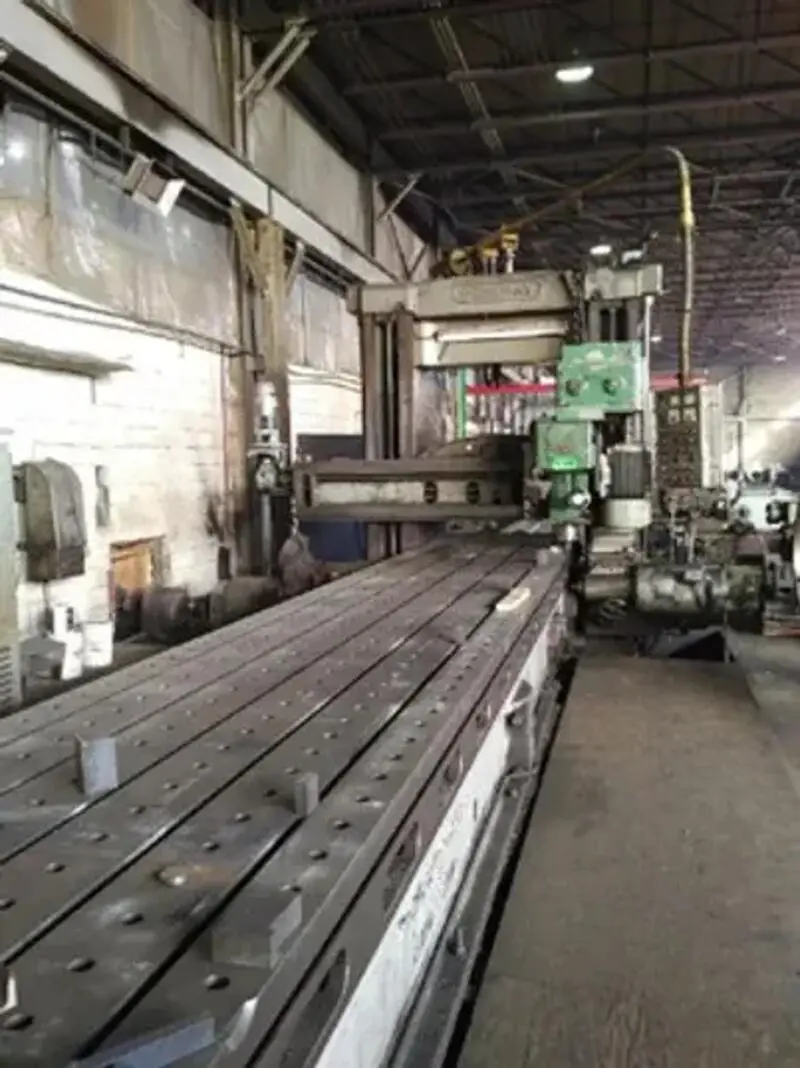

Table Size: 54" x 384"
Distance Between the housings: 62"
Distance Under Rail: 60"
Power of Rail head: 50 HP
Rail Head Taper: 50
Rail Head Spindle Speed: 1,250
Power of Side head: 30 HP
Side Head Taper: 50
Machine Dimensions: 768"L x 163"W x 136"H

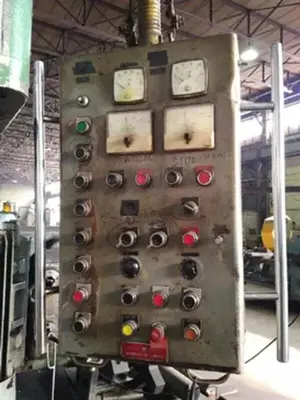

Retrofit Pendant with Push Button Controls
Pontiac TPC Milling head rated at 50 HP
Bertram Side head rated at 30 HP
Slotting Head
