Swing Over Bed: 22"
Swing Over Removable Gap: 31-1/2"
Swing Over Cross Slide: 14-1/2"
Distance Between Centers: 157"
Spindle Speeds(18): 20 - 1600 RPM
Feeds - Longitudinal: (98) .0007" - .720" / Rev.
Feeds - Cross: (98) .0004" - .360" / Rev.
Threads - Inch: (70) 1/4 - 56 TPI
Threads - Metric: (59) 0.5 - 112 TPmm
Spindle Hole Diameter: 3"
Spindle Nose: D1-8
Spindle Motor (440/3/60): 15 HP
Machine Dimensions (Approx.): 220" x 60" x 60" H
Machine Weight (Est.): 12,000 Lbs.
16 4-jaw chuck (3.5 bore)

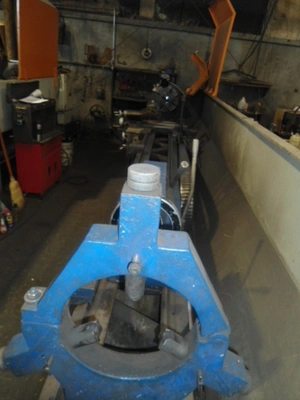

1-1/2 to 9-3/4 capacity steady rest
taper attachment
chuck guard
work light
thread dial
coolant pump system

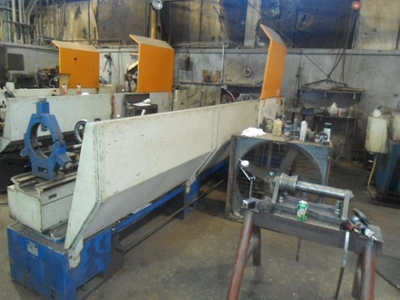

full length splash guards
parts catalog
operations and maintenance manual
