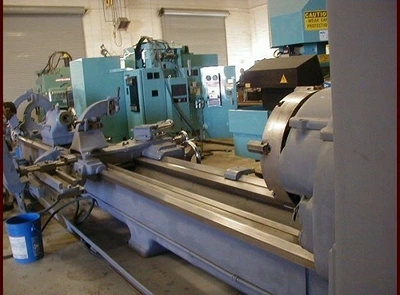

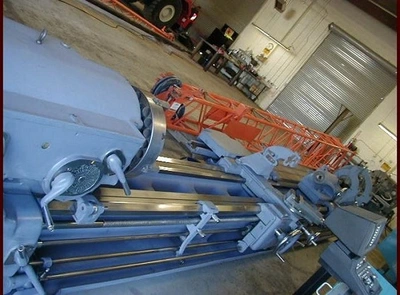

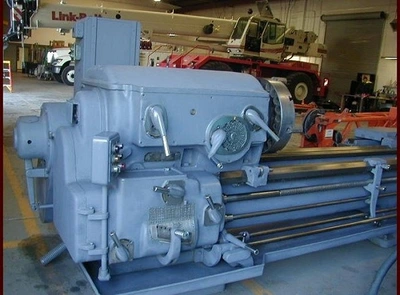

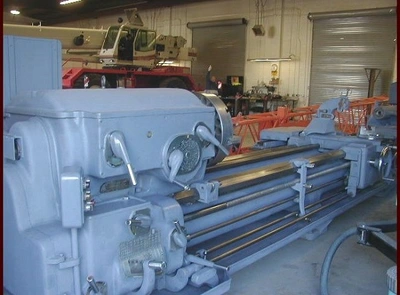

USED 1951 SIDNEY 27X181
Overview
Specs
Swing over bed: 27.5
Swing over cross slide: 20
Maximum distance b/t centers: 18ft
Spindle nose: D1-11
Spindle bore: 2-1/16
Spindle speeds: (16) 8 to 550 RPM
Tailstock taper: #5
Feeds: (60) ¾ to 46 IPR

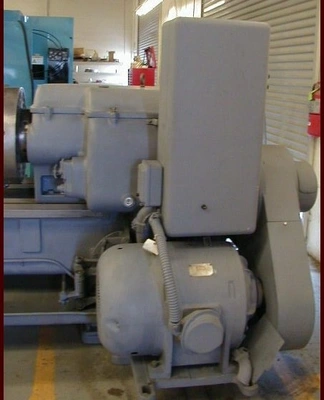

Main motor: 30 HP 220/440V
Approximate dimension: 27L X 6W X 5-1/2 H
Approximate weight: 19,000 LBS
Equipped With

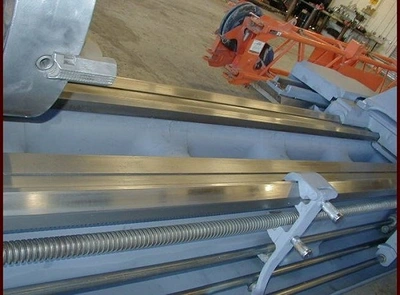

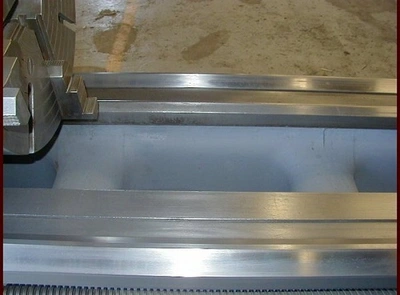

Hard, shiny bed ways

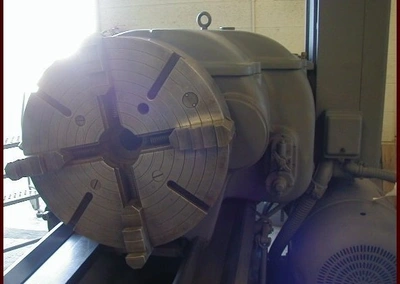

21 4 jaw chuck, steel Cushman

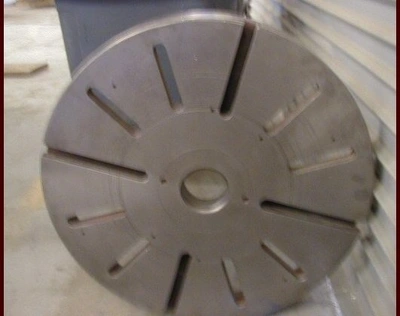

24 face plate

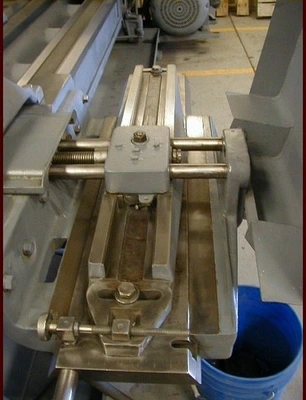

Taper attachment and bed clamp

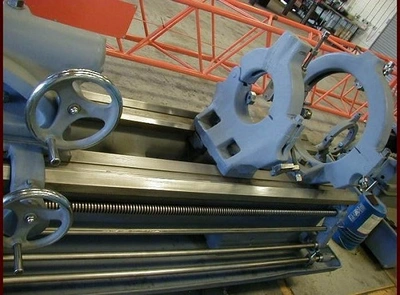

2 each steady rests, 10 & 18.5
Follower rest
Coolant pump
Micrometer bed stop
Chip pan
