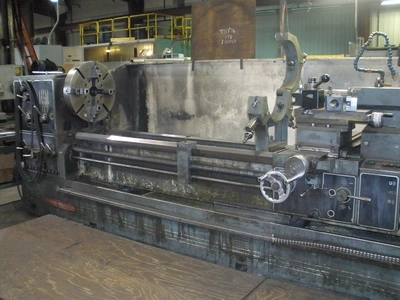

Swing Over Bed: 32"
Swing in Gap: 41-11/32"
Swing Over Cross Slide: 20-7/8"
Bed Width: 18.7"
Spindle Bore: 4"
Spindle Nose: A1-11
Spindle Taper: MT6
Spindle Motor: 25 HP
Spindle Speeds(15): 11 - 1,000 RPM
Long Feed Rates(66): .0016 - .0960 IPM
Cross Feed Rates(66): .003 - .0806 IPM
Machine Dimensions: 43-1/2"W x 189"L x 58-3/4"
Machine Weight: 12,300 LBS
Metric & Inch Threading
24" 4-Jaw Chuck
Steady Rest
Tailstock
