Swing over bed: 28.750"
Swing over slide: 17"
Max center distance: 168"
Spindle nose: D1-11
Spindle bore: 2-5/8
Spindle speeds: 24 Changes 6 to 555 RPM
Tailstock Taper: #5
Width of Carriage: 36"
Width of bed: 26"

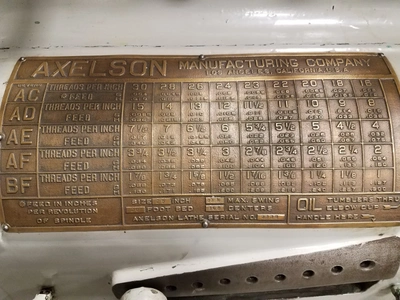

Threads: 45 Changes 1 to 30 TPI
Feeds: 45 Changes .004 to 127 IPR
Main motor: 20 HP

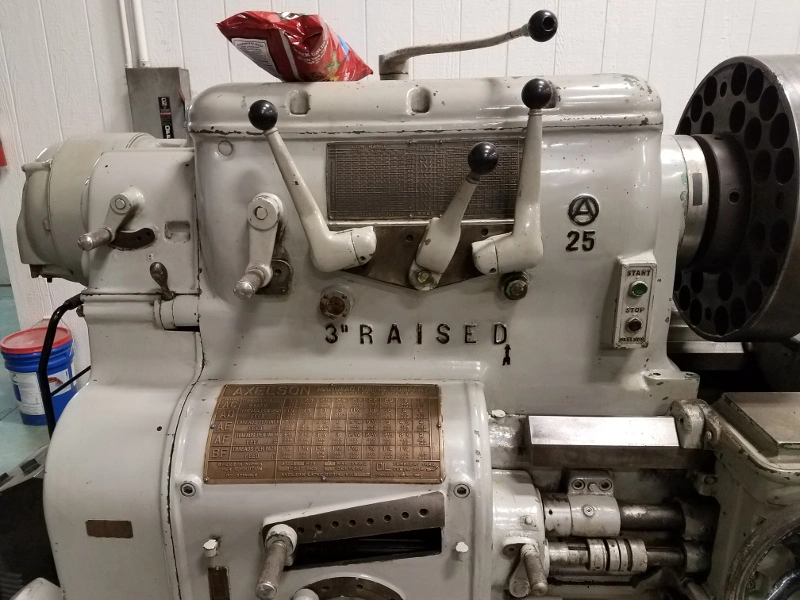

Raised Head & Tailstock
24" 4 Jaw Chuck
