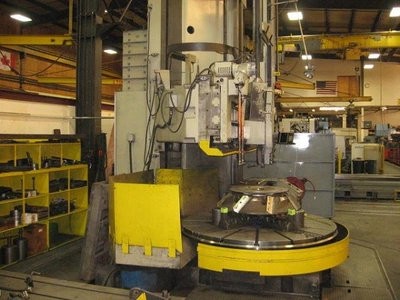

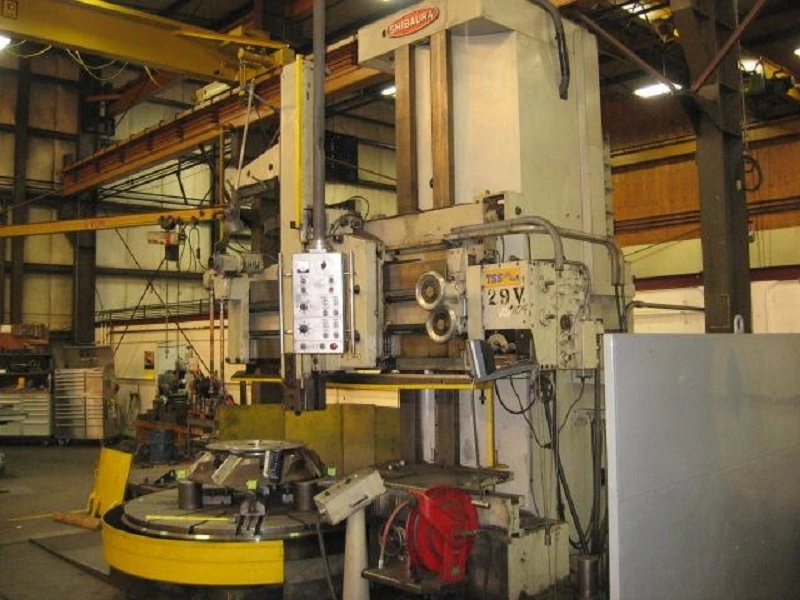

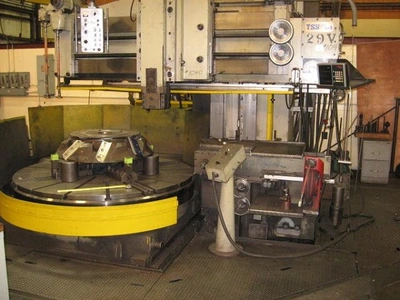

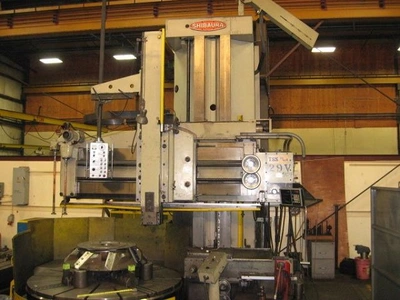

USED 1978 TOSHIBA SHIBAURA
Overview
Specifications
Table Diameter: 78.70"
Maximum Swing: 157.50"
Maximum Height Under Rail: 78.70"
Number of Heads: 1
Table Speed: 120 RPM
Table Motor: 50 HP
Max. Turning Diameter to Center: 126"
Max. Turning Height Above Table: 78.70"
Max. Workpiece Weight: 44,000 LBS
Vertical Travel of Tool head: 36"
Horizontal Travel of Tool Head: 68.50"
Horizontal Travel of Column: 9.40"
Ram Size: 8.25" Square
Max. Clearance Cross Rail & Table Surface: 88.70"
Vertical Travel of Cross Rail: 41.30"
Rapid Travel of Tool Head: 250 IPM
Feed Rate of Tool Head: .0001 to 40 IPM
Range of Table Speed: 3-Steps Variable (1 to 120 RPM)
Machine Dimensions: 264" x 205" x 240"
Machine Weight: 66,000 LBS
Equipped With
Single Column Design
Side Head
Tracer
Digital Readouts

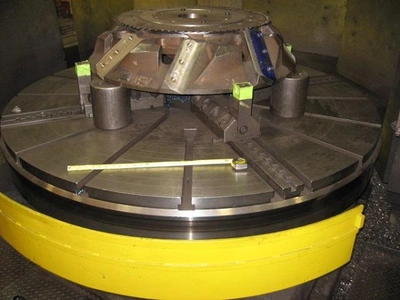

4-Jaw T-Slotted faceplate
Misc Tooling Guards
ELECTRICS-460 Volt Wiring
