Control: Fanuc 18i-TB
Chucking Dia.: 3-19 mm
Max. Machining length: 210 mm
Max. Drilling Dia.: 7 mm
Max. Tapping: 6 mm
Max. Cross drill: M5 x .08
Main Spindle Speed: 10,000 RPM
Main Spindle bore: 23.5 mm
Spindle Index: 15 Degree
O.D Tool Holders: 7
Cross Driven Tool Holders: 3
I.D. tool Holders: 3
Backworking Tool Holders: 3
Sub-Spindle Speed: 8,000 RPM
Sub Spindle Bore: 19.5 mm
Main Spindle Motor: 1.1/3.7 Kw
Sub Spindle Motor: 0.75/1.1 Kw
X1/Y/Z1/Z2 Axes Motor: 0.3 Kw
A/B/X2/T3 Axes Motor: 0.5 Kw

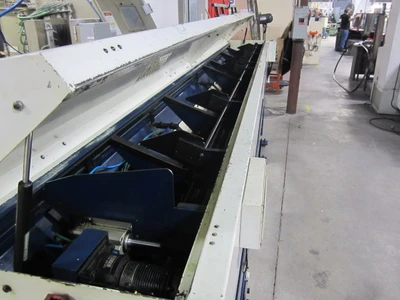

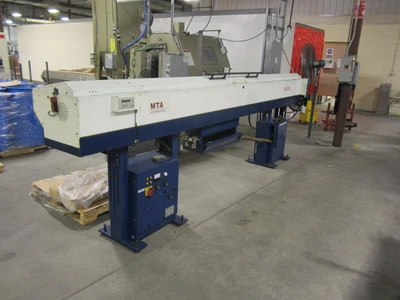

MTA HM2037 Bar Feeder
Misc Tooling
Available Books & Manuals
