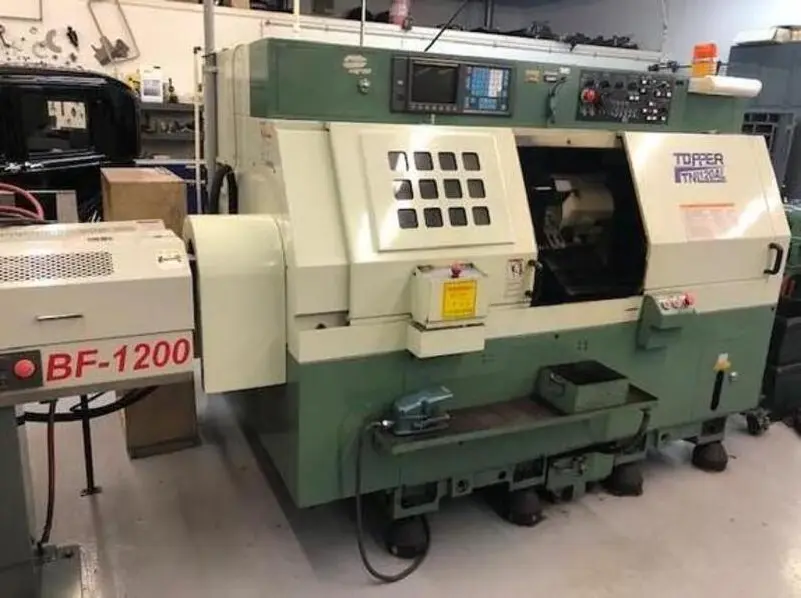

USED 2000 TONG-TAI TOPPER

Swing over bed/Front cover: 14.6"
Standard turning diameter: 10.39"
Swing over carriage: 12.6"
Maximum cross travel (X axis): 5.9"
Maximum longitudinal travel (Z axis): 15.75"
Distance between centers: 20.0"
Spindle Motor: 20 HP
Spindle nose: A2-6
Spindle RPM: 36-4800 (8" Chuck)
Hole through spindle: 2.4"
Bar Capacity: 1.7"
Spindle bearing diameter: 3.9"
Spindle inside taper: M.T. 5
Turret tool positions: 12
Quill diameter of tailstock: 2.95"
Quill stroke of tailstock: 2.95"
Quill taper of tailstock: M.T. 4
Tailstock body travel: 15.7"
Floor Space: 119" X 57" X 66"

FANUC 0T CNC CONTROL
PARTS CATCHER
12 POSITION BLOCK STYLE TURRET
TAILSTOCK
CHIP CONVEYOR
TOPPER BF-1200 BARFEED
ALL AVAILABLE TOOLHOLDERS AND MANUALS
