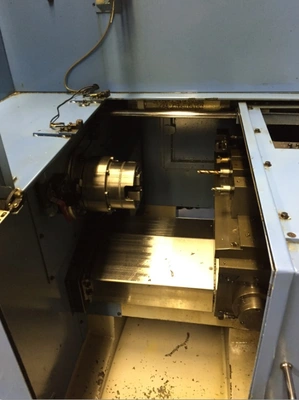

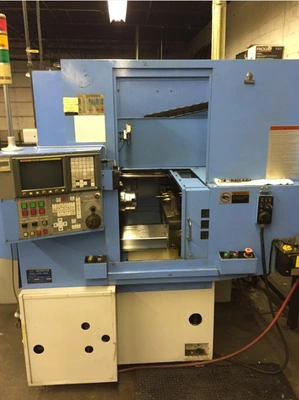

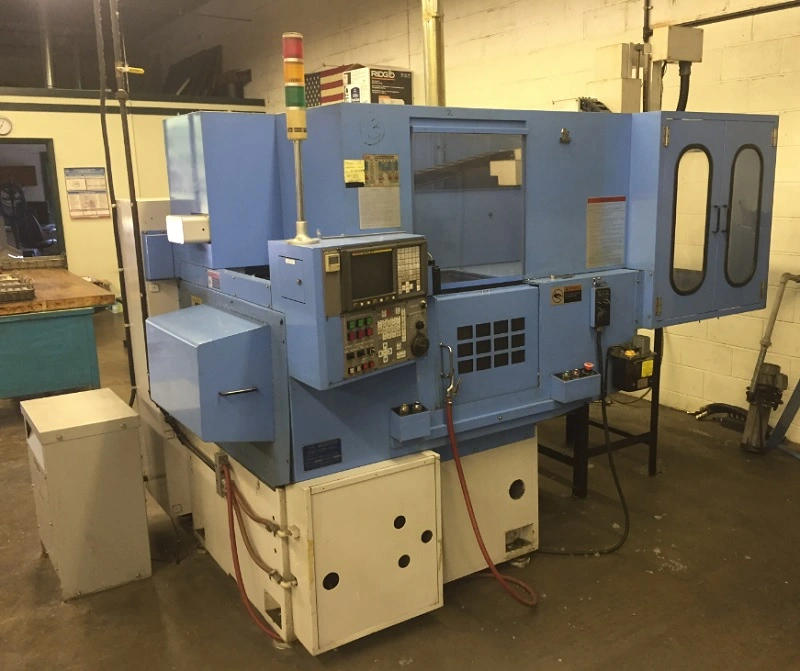

USED 1999 TAKAHASHI TNC-L02-NCL
Overview
Specs

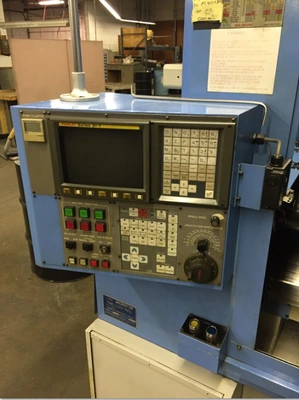

Control: Fanuc 21-T
Maximum turning diameter: 3.15"
Maximum turning length: 3.15"
X Axis travel: 9.8"
Z Axis travel: 9.8"
Spindle speed range: 80-8000 rpm
Hole thru spindle: 1.34"
Maximum number of mounted tool holders: 8
Rapid feed rate X Axis: .47 in/min
Rapid feed rate Z Axis: .63 in/min
Machine IN feed rate: .01-19.67 in/rev
Spindle power: 5/3 hp
Approximate machine weight: 6,000 lbs
Equipped With
platent type tool slide
dual gripper auto load system W/pallet
6" two jaw AHD chuck
chip conveyor
Chip Blaster high pressure coolant system
transformer
manuals and tooling
