Swing Over Bed: 27.95"
Swing Over Carriage: 21.45"
Max Turning Diameter: 12.59"
Distance Between Centers: 36.02"
Max Turning Length: 22.44"
X Axis Travel: 6.89"
Z Axis Travel: 22.44"
Y Axis Travel: 3.54"
B Axis Travel: 25.59"
C Axis(s) Index: .001 DEG
Main Spindle Motor: 25 HP
Main Spindle Nose: A2-6
Main Spindle Bar Capacity: 2.59"
Main Spindle Speed: 45 - 5,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Sub Spindle Bar Capacity: 1.44"
Sub Spindle Speed: 6,000 RPM

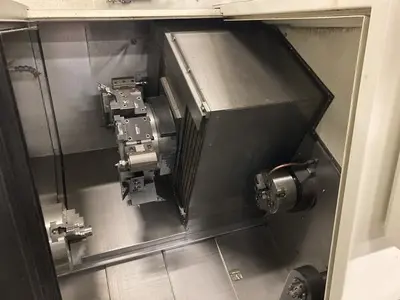

Number of Turret Stations: 12
8" Chuck (Main Spindle)
6" Chuck (Sub Spindle)

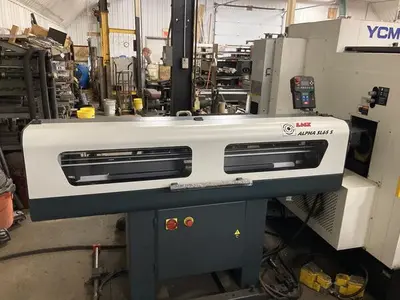

LNS Alpha SL65 S Bar Feeder

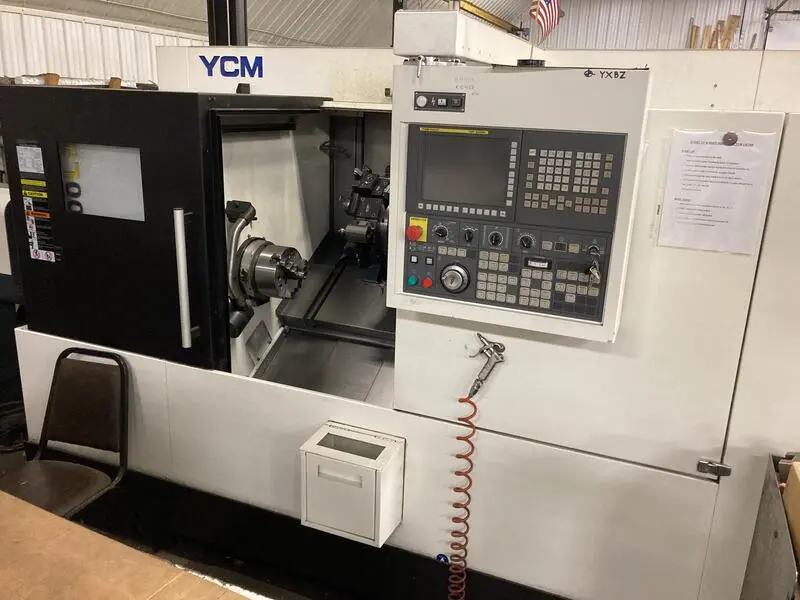

Fanuc TXP-200FA CNC Control
Parts Catcher System
Chip Conveyor
