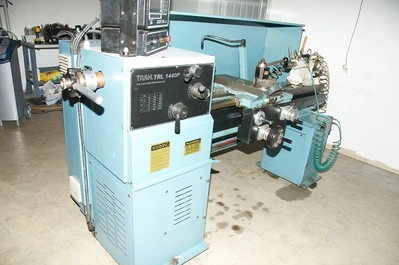

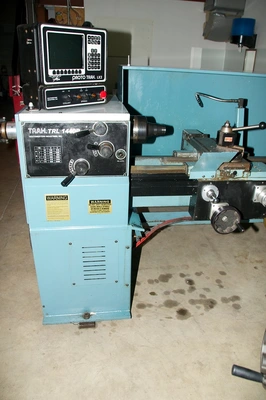

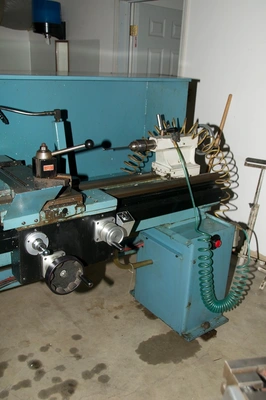

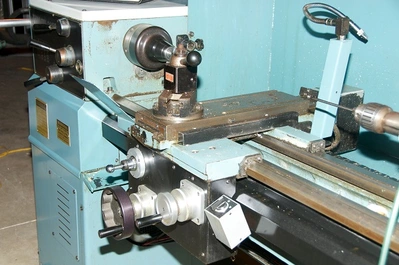

USED 2000 SOUTHWESTERN INDUSTRIES

Control: PROTO TRAK LX2
Swing Over Bed Ways: 14"
Swing Over Cross Slide: 7-13/16"
Maximum Distance Between Centers: 40"
Spindle Speeds: 35 - 2400 RPM
Cross Slide Tool Travel (18): 8"
Rapid Cross Slide Feed Rate: 100 IPM
Rapid Longitudinal Feed Rate: 150 IPM
Threading Range, Infinite: Std. ID/OD & Tapered
Maximum Number of Thread Leads: 10
Spindle Nose Taper: Camlock D1-5"
Spindle Motor: 4.5 HP
Diameter of Hole Thru Spindle: 1-5/8"
Collet Type & Capacity: 5C, 1-1/16" Dia.
Tailstock Taper: #3 MT
Overall Dimensions: 90" x 40" x 60" High
Machine Weight, Approx.: 2000 Lbs.

Floppy Disc Drive & RS-232 Port Interface
Auto Cutter Compensation
Auto. 1-Shot Lube System
Lever Action Collet Closer

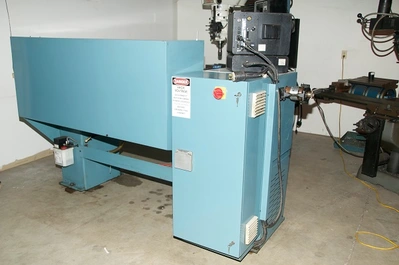

Rear Splash Guard
6" 3-Jaw Chuck
Chuck Guard
