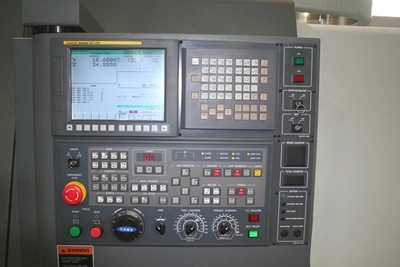

Control: Fanuc 0iTD
Swing Over Bed: 23.62"
Swing Over Cross Slide: 16.73"
Maximum Machining Diameter: 16.50"
Distance Between Centers: 60.24"
Spindle Speed: 2,000 RPM
Spindle Bore: 5.20"
Spindle Motor: 30 HP
Spindle Nose: A2-11

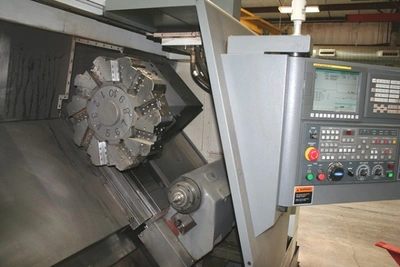

Number of Turret Positions: 10
X Axis Travel: 9.45"
Z-Axis Travel: 63.19"
Tailstock Quill Stroke: 4.72" (Hyd)
Tailstock Quill Diameter: 5.12"
Manual Guide I
Thread Repair Option
Tool Pre-Setter

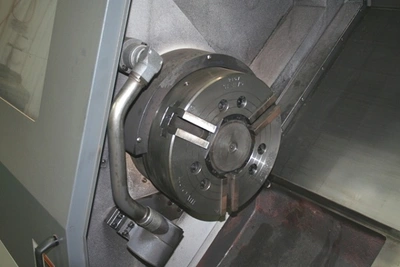

15" 3-Jaw Chuck
Programmable Tailstock
Rigid Tapping

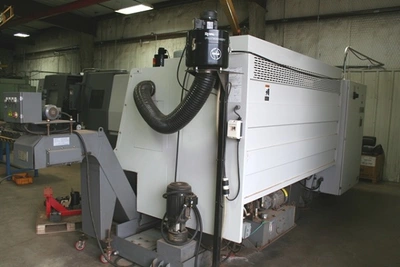

Chip Conveyor
Box Ways
