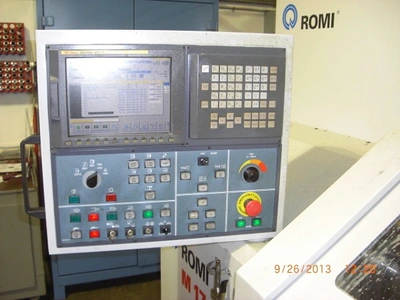

Control: Fanuc 21i-T
Swing Over Bed: 16.93"
Swing Over Cross Slide: 8.03"
Distance Between Centers: 43.46"
X Axis Travel: 8.66"
Bed Width: 12.01"
Bed Height: 13.07"
Spindle Nose: A2-6
Hole Through Spindle: 2.56"
Spindle Motor: 10 HP
Spindle Speeds: 3 - 3,000 RPM
Tailstock Quill Travel: 4.72"
Tailstock Quill Diameter: 2.36"
Tailstock Quill Taper: 4MT
Machine Weight: 6,500 LBS
8" Chuck

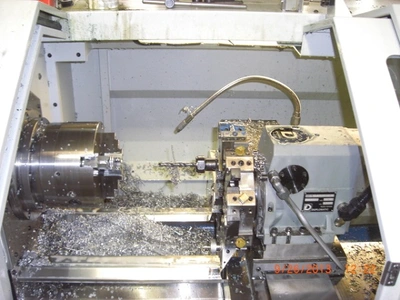

8 Station Turret
Coolant Skimmer
Steady Rest
