Control: OSP-P200L
Maximum Swing: 24.8"
Maximum Distance Between Spindles: 35.43"
X Axis Travel: 22.83"
Z Axis Travel: 37.2"
Y Axis Travel: ± 3.15"
W Axis Travel (Right Spindle Travel): 39.37"
C Axis Minimum Increment: 0.001°
B Axis Travel (Angle Milling): -30° to +195°
Rapid Traverse Rate (X & Z Axis): 1575 IPM
Rapid Traverse Rate (Y Axis): 1024 IPM
Rapid Traverse Rate (W Axis): 787 IPM
Spindle Motors (Main, Sub): 10 HP, 5 HP
Tool Changer Capacity: 40 Stations
Milling Tooling Speeds: 50 - 6000 rpm
Milling Motor: 15 HP

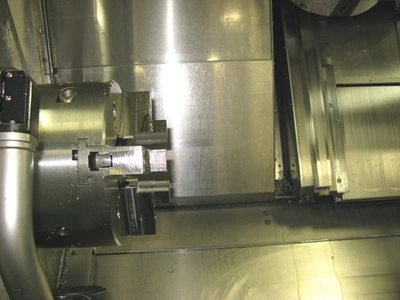

10" Main Spindle Chuck

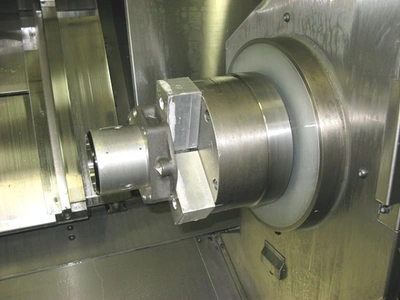

8" Sub Spindle Chuck
