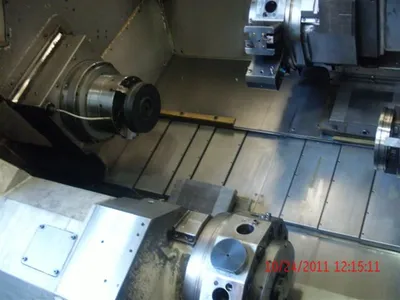

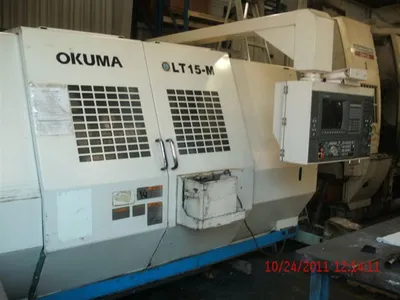

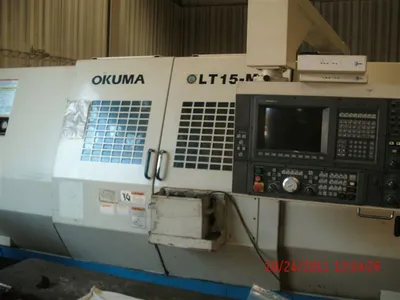

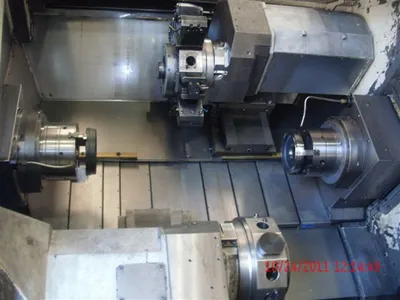

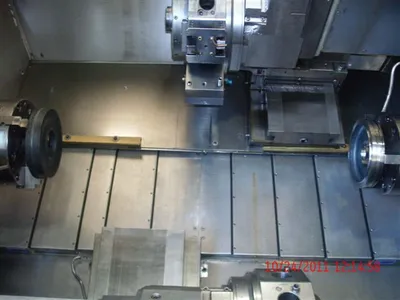

USED 1999 OKUMA LT-15M-BB

Control: OSP U100L
Swing Over Bed: 21.65"
Distance Between Centers: 40.00"
Maximum Turning Diameter: 10.27"
Max Turning Length: 30"
Spindle Speeds: 45-4500 RPM
Spindle Motor: 20/15 HP
Spindle Nose: A2-8
Spindle Bore: 3.15"
Max Bar Size: 2.65"
Turret Stations: (2) 12 Position Turrets
Turret Index Time: 0.8 Seconds
Z- Axis Head One: 27.56"
Z- Axis Head Two: 27.56"
X- Axis Head One: 7.56"
X- Axis Head Two: 7.56"
Rapid Travels(X / Z): 1181 IPM / 1574 IPM
Rotary Tools Motor: 5.4 HP
Rotary Spindle Speed: 6,000 RPM
Machine Dimensions: 144" x 80" x 83.27"
Machine Weight: 20,000 LBS

(2) 10" CHUCKS
Full C axis
High Pressure Coolant
All Available Live Holders
Stardard Tooling, Lage Package
Big Bore Option
Chip Conveyor
Synchronous Tapping
Cycle Time Reduction
DNC-A
Load Monitor
MAC MAN
Coordinate Conversion
Parts Catcher
All Available Manuals
