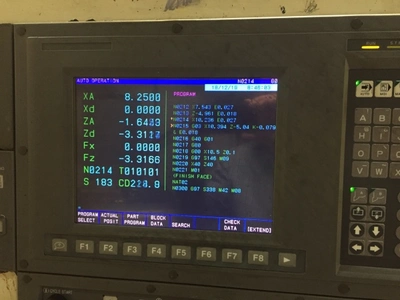

Control: OSP-U100L
Max Diameter Bar Capacity: 4.6"
Max Swing Over Bed / Carriage: 33.07" / 21.85"
Distance Between Centers: 80"
Turning Diameter (Max / Std): 25.98" / 17.72"
Max Machining Length: 78.74"
Spindle Motor: 60 / 50 HP
Spindle Speed: 12 - 2300 RPM
Spindle Bore: 5.12"
Spindle Nose: A2-11
Tools: 12 Upper / 10 Lower
Milling Motor: 10 / 7 HP
Milling Speed: 2000 RPM
X-Axis Travel - (Upper / Lower Turret): 17.32" / 12.01"
Z-Axis Travel - (Upper / Lower Turret): 82.28" / 79.72"
C-Axis Index: .001 Degrees
Tailstock Quill: MT#5
Machine Dimensions (L x W x H): 200" x 111" x 118"
Machine Weight: 28,600 lbs.

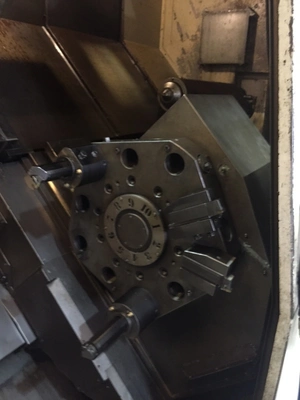

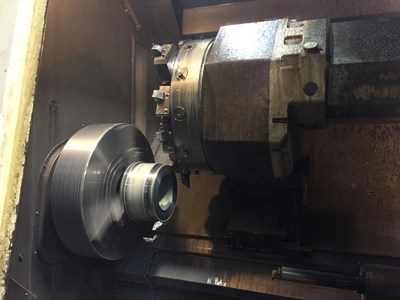

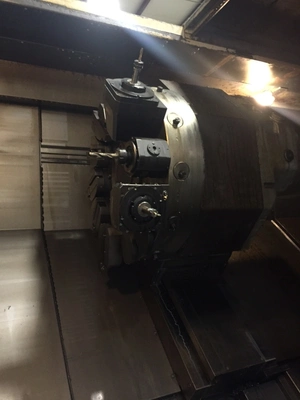

12 POSITION UPPER TURRET
10 POSITION LOWER TURRET
C AXIS LIVE TOOLING ON UPPER TURRET

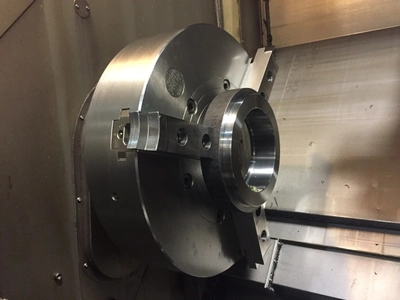

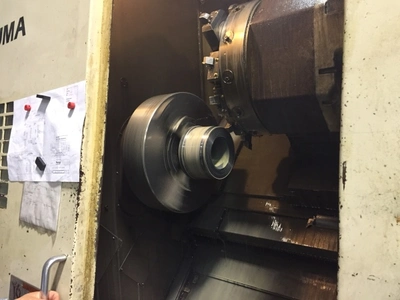

KITAGAWA B-24 24" DIA. POWER CHUCK
CHIP CONVEYOR
