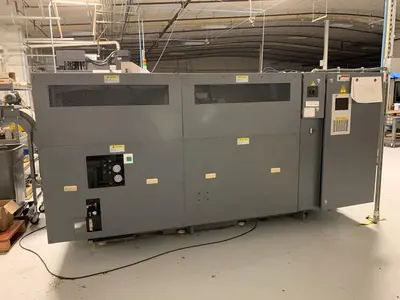

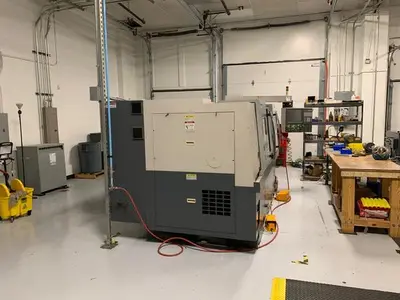

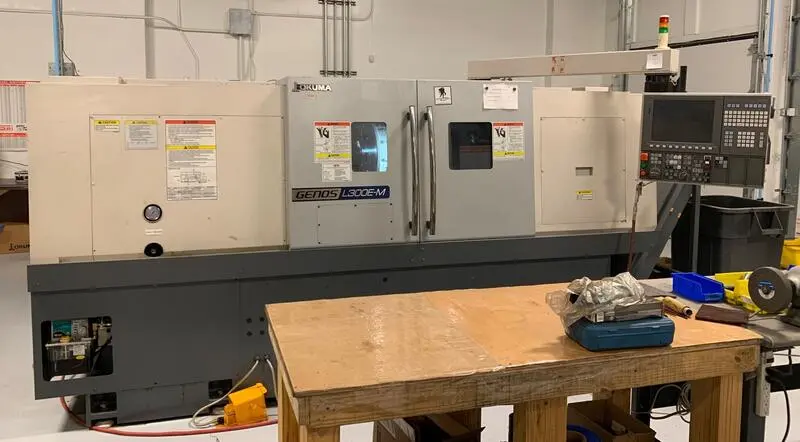

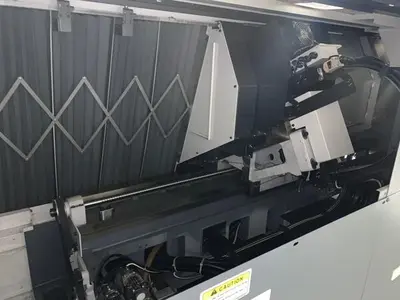

USED 2014 OKUMA GENOS
Overview
Specs
Max Swing Over Slant Bed: 20.47"
Max Swing Over Saddle: 14.81"
Chuck Size: 10"
Max Turning Length: 41.73"
X-Axis (Cross Travel): 9.25"
Z-Axis (Longitudinal Travel): 45.03"
Tool Turret Positions: 12

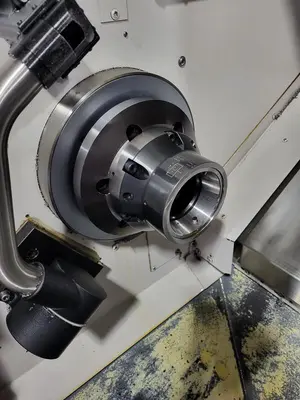

Spindle Nose: A2-6
Spindle Bore: 3.14"
Bar Capacity of Equipped Chuck: 75mm (2.95")
Spindle Horsepower: 19.4 HP
Spindle Speed Range: 20 - 3,000 RPM
Milling Spindle Horsepower: 9.1 HP
Milling Spindle Speed Range: 20 - 4,500 RPM
Rapid Traverse Rate: 984 IPM
Approximate Machine Dimensions: 78" x 158"
Approximate Machine Height: 85"
Approximate Machine Weight: 15,400 LBS
Equipped With

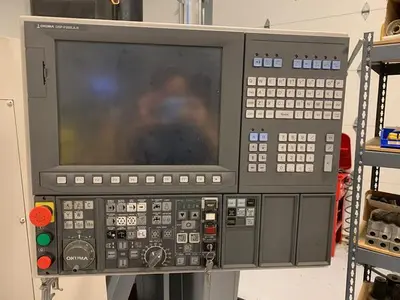

OSP-P200LA-R CNC Control

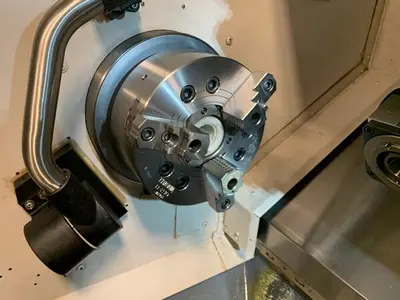

Kitagawa B-210A8 10" 3-Jaw Chuck

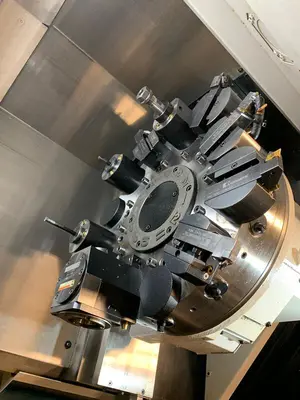

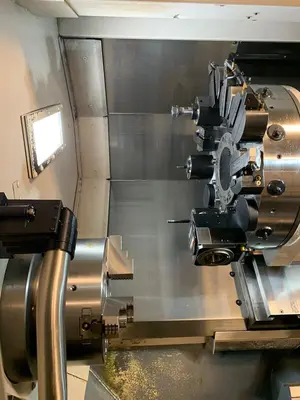

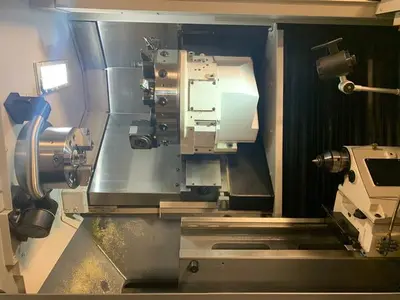

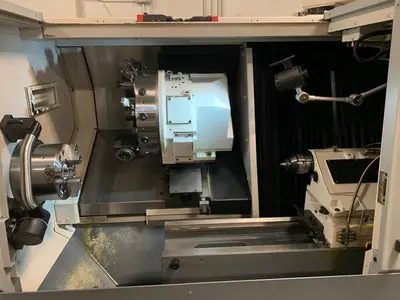

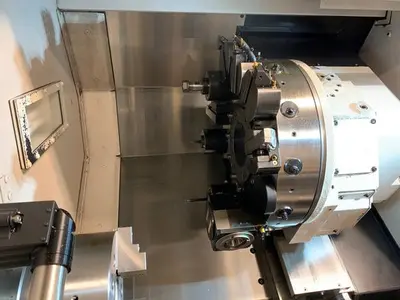

12 Station Servo Driven Turret

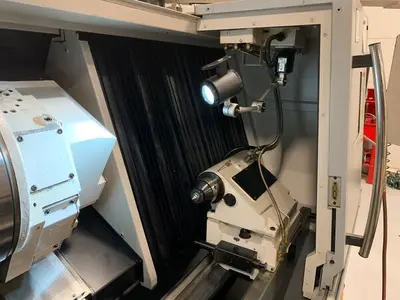

Programmable Tailstock
HI-G Control
Full C-Axis
Plane Conversion
Profile Generation
Rigid Tap
Lap4
User Task 2
Expanded Auto Chamfer
USB Port
3D Animation

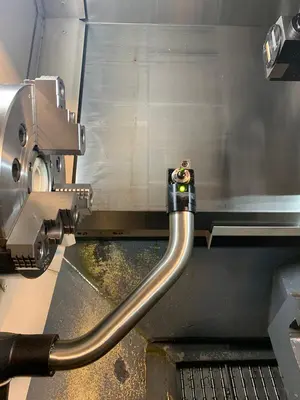

Tool Setter Probe
Hi-Cut Pro
New Cycle Time Reduction
Tool Life Management
Tool Wear Comp
Spindle Orientation
Milling Tool Orientation
Thermal Copm L2

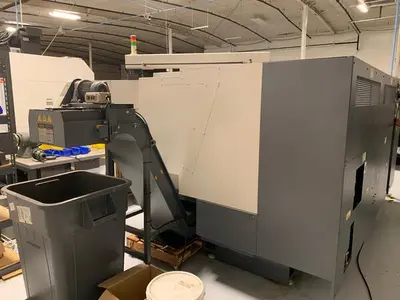

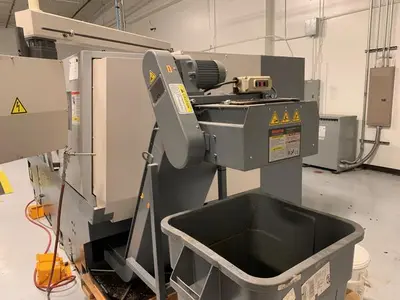

Chip Conveyor
Coolant System
