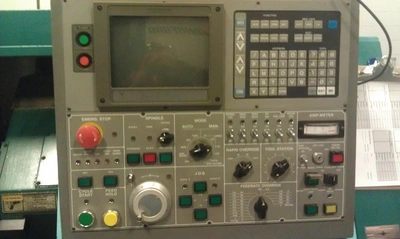

Control: Yasnac LX-3
Swing Over Bed: 19.68"
Swing Over Carriage: 12.99"
Max Work Piece Diameter: 11.2"
Max Work Piece Length: 25.59"
Spindle Motor: 15/20 HP
Spindle Speed Range: 10 - 3500 RPM
Spindle Nose: A2-8
Hole Through Spindle: 3.15"
Bar Capacity: 2.5"
X-Axis Slide Travel: 7.16"
Z-Axis Slide Travel: 26.57"
Rapid Traverse X/Z: 400 IPM / 500 IPM
Thrust: X: 1815 ft. Lbs / Z: 2129 ft. Lbs
Number of Tools: 10 Position Turret
Index Time: 1: .7 sec / Five Station: 2.2 sec
Tailstock Quill diameter /. Quill Taper / Quill Stroke: 3.54" / MT5 / 5.12"
Max Distance Between Centers: 35.16"
Dimensions: 118" x 106" x 71"
Weight: 9780 lbs

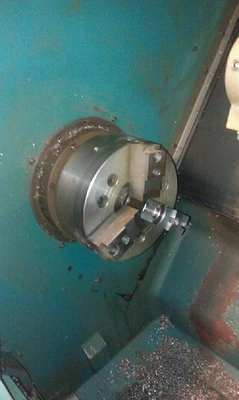

10" 3-Jaw Hydraulic Chuck
Tailstock
Chip Conveyor
