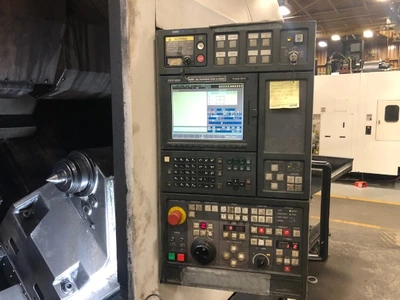

Control: Mori MSC-501 (Fanuc 21T)
Max. Swing over Bed: 40.55"
Max. Swing over Crosslide: 28.85"
Max. Turning Diameter: 35.43"
Distance between Centers: 51.18"
Max. Machining Length: 39.37"
Spindle Bore Dia.: 6.5"
Spindle Nose: A2-20
Spindle Motor: 50 HP
Spindle Speeds: 45-700 RPM
Number Of Turret Positions: 10
X - Axis Travel: 19.09"
Z - Axis Travel: 45.28"
Tailstock Quill Diameter: 5.90"
Tailstock Quill Stroke: 5.91"
Tailstock Travel: 43.31"
Tailstock Taper: MT5
Machine Weight: 33,000 lbs
Chip Conveyor
24" 3-Jaw SMW Autobloc Chuck
Live Tooling
