Control: Mori MSC (Fanuc 18T)
Swing Over Bed: 24.4"
Swing Over Cross Slide: 17.9"
Max Turning Diameter: 16.9"
Max Distance Between Spindles: 24.8"
X Axis Travel: 9.1"
Z Axis Travel: 20.5"
B Axis Travel (Sub Spindle): 16.9"
Main & Sub Spindle Nose: A2-5
Main Spindle Bore: 2.2"
Main Spindle Bar Capacity: 1.86"
Main & Sub Spindle Speeds: 60 - 5,000 RPM
Main Spindle Motor: 15 HP
Sub Spindle Motor: 11 HP

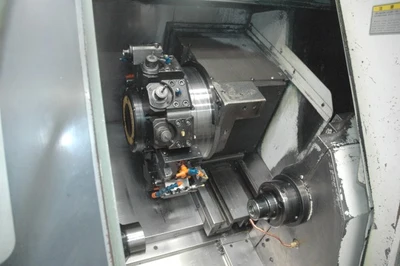

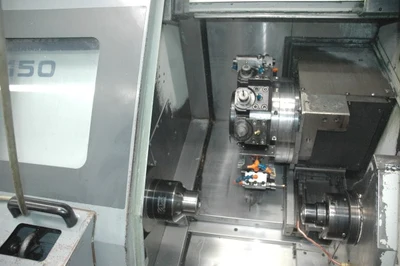

Turret Capacity: 12 Station
Live Tooling Motor: 3.5 HP
Live Tooling Speed: 3,000 RPM
Machine Dimensions: 88"W x 71"L x 73"H
Machine Weight: 9500 LBS

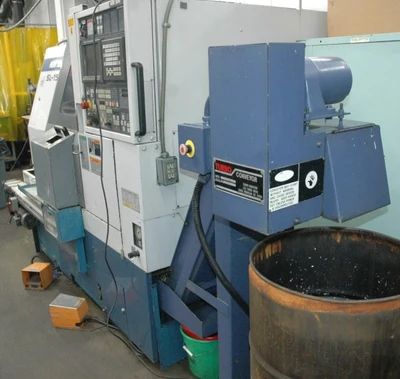

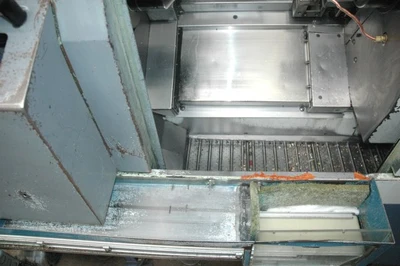

Turbo Chip Conveyor
16C Collet Chucks (Main & Sub)

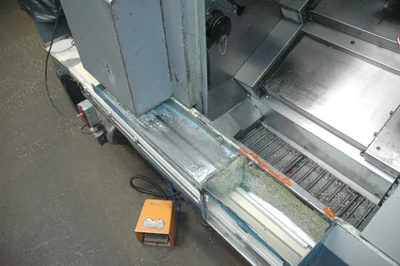

Auto Parts Catcher
