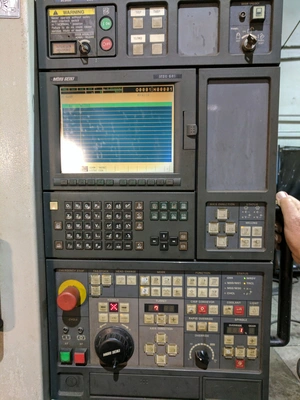

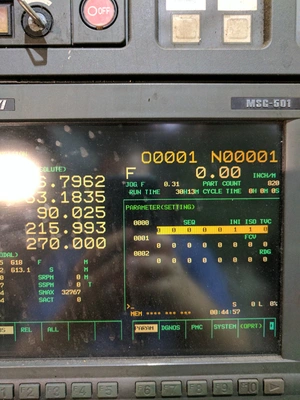

Control: MSG-501 (Fanuc 18iTA)
Swing Over Bed: 22.44"
Swing Over Cross Slide: 19.69"
Distance Between Centers: 64.45"
Max. Turning Diameter: 10.33"
Max. Turning Length: 61.42"
Bar Work Capacity: 3.50"
X Axis Travel: 9.84"
Z Axis Travel: 64.96"
Spindle Speed Range: 30-3,000 RPM
Through Spindle Hole Diameter: 4.13"

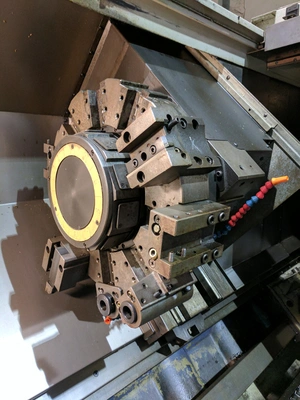

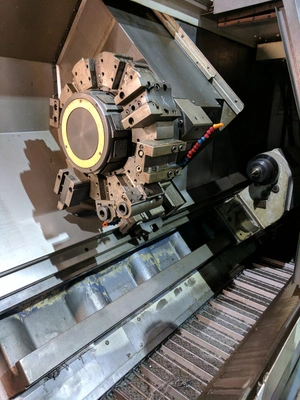

Type of Turret: 12 St.
Rotary Tool Spindle Speed Range: 4,000 RPM
Rapid Traverse Rate X,Y: 590.55/787.40 IPM

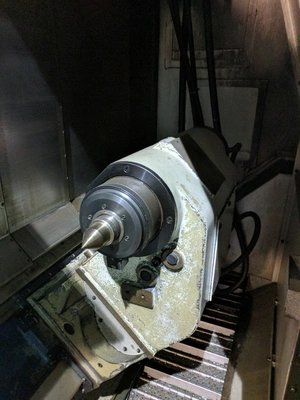

Tailstock Travel: 55.12"
Tailstock Spindle Diameter: 5.11"
Taper Hole of Tailstock Spindle: MTS Built in Center
Tailstock Spindle Travel: 5.91"
Spindle Drive Motor: 40/30 Hp
Rotary Tool Spindle Drive Motor: 6.43 HP
Machine Height: 84.65"
Floor Space: 181.10 x 81.10"
Machine Weight: 19,140 Lbs

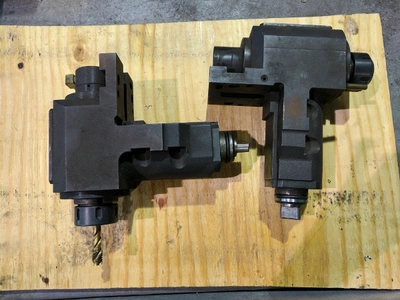

Live Tooling
Chip Conveyor
Misc Extra Turret Tooling

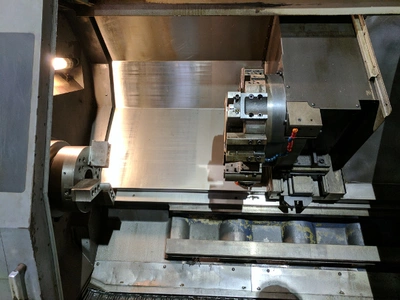

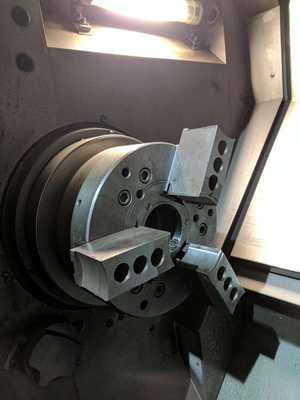

3-Jaw Hydraulic Chuck
