-General Specifications-
Swing over Bed: 36.37"
Swing over cross slide: 29.72"
Max. Turn diameter: 14"
Standard Turn diameter: 10.67"
Max. turn length: 20.07"
-Spindle 1-
Chuck size: Collet
Bar capacity: 2.55"
Spindle bore: 2.87"
Spindle nose: A2-5
Spindle speeds: 5000RPM
Spindle motor: 20HP
Min. spindle indexing angle: .001 degree
-Spindle 2-
Chuck size: Collet
Bar capacity: 2.55"
Spindle bore: 2.87"
Spindle nose: A2-5
Spindle speeds: 5000RPM
Spindle motor: 15HP
Min. spindle indexing angle: .001 degree
-Travels-
X axis travel: 10.24"
Y axis travel: -1.97"- +1.97" Z
axis travel: 23.23" Spindle 2
travel (B axis): 24.57"
-Turret-
Drum type: 12stations
Rotary tool max. spindle speed: 10,000RPM
Machine weight: 12,600LB Floor
space: 140" X 82" Machine
height: 85"

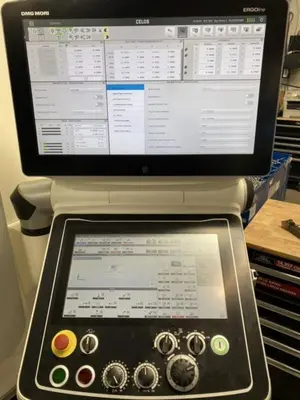

M730UM CELOS CNC Control
Chip conveyor
Tool eye
Chip Blaster High Pressure Coolant system
Parts catcher
Royal Collect Chuck MAIN Spindle
