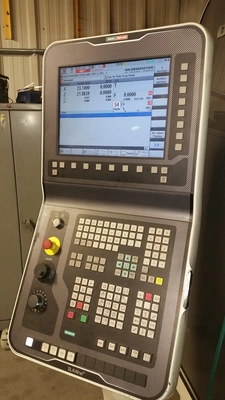

Control: SIEMENS SINUMERIK 840D SL
Max swing over bed: 26.77"
Swing over X-slide: 18.31"
Max. turning diameter: 18.31"
Clamping chuck diameter: 9.84"-12.40"
Travel X axis: 11.81"
Travel Z axis: 41.34"
Rapid traverse X/Z axes: 1.18/1.18 IPM
Spindle Nose: 220 H5
Spindle Bore: 4.04"
Spindle Bar Capacity: 2.99"
Spindle Motor: 44 HP
Spindle Speed: 3,250 RPM

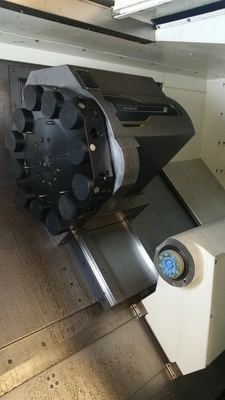

Number of Turret Stations: 12
Number of Live Tool Stations: 6
Live Tools Drive Motor: 11 HP
Live Tools Speed: 4,000 RPM
Machine Dimensions: 208"L x 96"W x 81"H
Machine Weight: 18,000 LBS
Tailstock

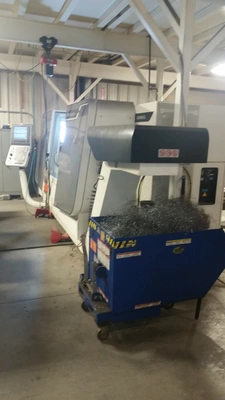

Chip Conveyor

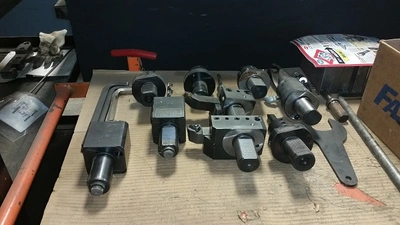

Live Tooling
Marposs Tool Pre Setter
SMW 12.5" 3-Jaw Chuck

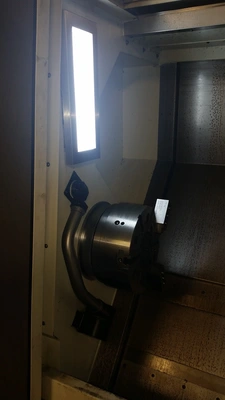

Parts Catcher
