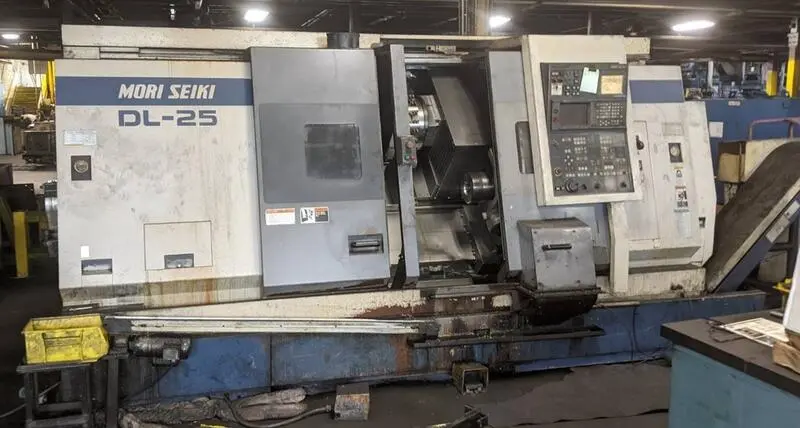

USED 1997 MORI SEIKI

Maximum Swing Over Bed: 14.57"
X-Axis Travel: 10.63"
Z-Axis Travel: 14.57"
Maximum Turning Length: 2 x 14.17"
Maximum Distance Between Opposing Spindles: 52.76"
Number of Tools per Turret: 12
B-Axis for Workpiece Handover: 40.16"
Spindle Bore Diameter: 3.15"
Spindle Bearing Inner Diameter: 5.11"
Spindle Speed: 35 - 3500 RPM
C-Axis Spindle Speed: 2000 RPM
X-Axis Rapid Traverse: 472 IPM
Y-Axis Rapid Traverse: 590 IPM
Z-Axis Rapid Traverse: 787 IPM
Spindle Motors: 20 HP each

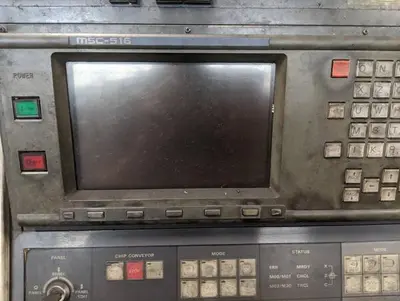

Fanuc-Mori MSC-516 Control
Parts Catcher
Tool Presetter
Chip Conveyor
