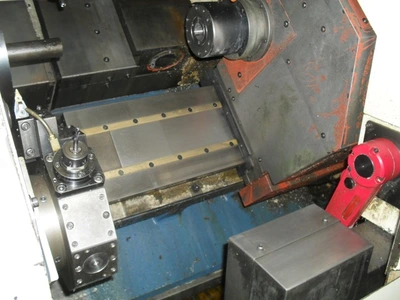

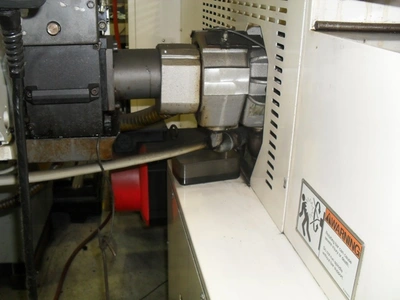

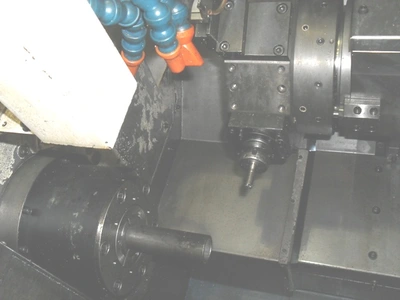

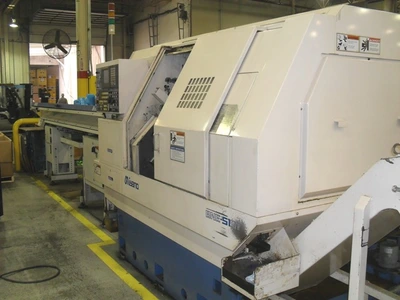

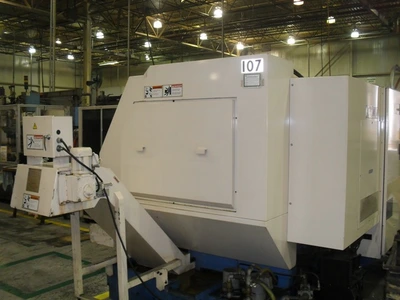

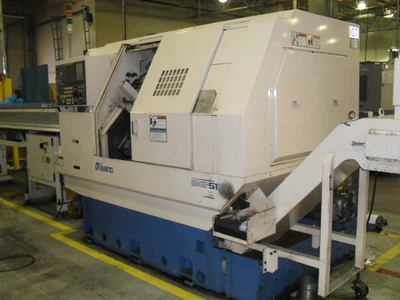

USED 2003 MIYANO BNE
Overview
Specs

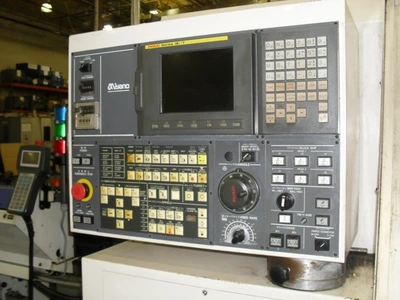

Control: Fanuc 18iT
Maximum Swing, (Upper/Lower): 20"/ 17"
Maximum Turning Diameter: 17"
Maximum Turning Length: 17.72"
Collet Chuck Size Main Spindle: 8"
Collet Chuck Size Sub Spindle: 6"
Spindle Bore: 2.4"
Bar Capacity: 2"
Spindle Drive (R/L Spinlde): 14.75 hp, 7.37 hp
Spindle Speed: 54-4000 rpm
Rear Spindle Chuck Size: 5"
Rear Spindle Drive: 7.37 hp
Rear spindle Speed: 4500 rpm
Mill Drill Number of tools: 11
Mill Drill Spindle Speed: 150 rpm-4000 rpm

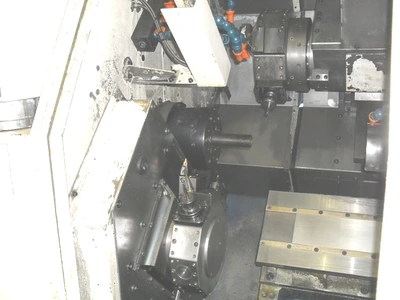

Number of Turrets: 2
Number of Stations (Upper/Lower): 12/10
Equipped With
Collet Chucks Front & Rear
Chip Conveyor
Parts Catcher
Network Interface
Flood Coolant
.0001 Degrree on Both "C" Axis

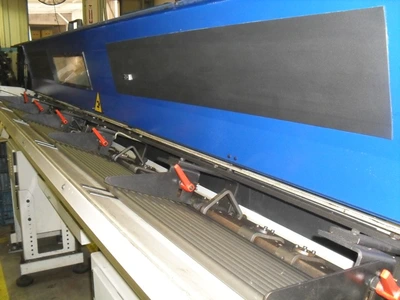

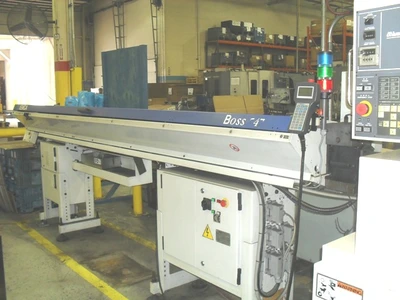

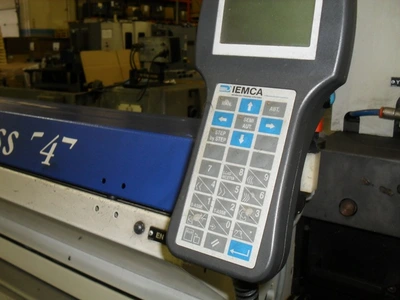

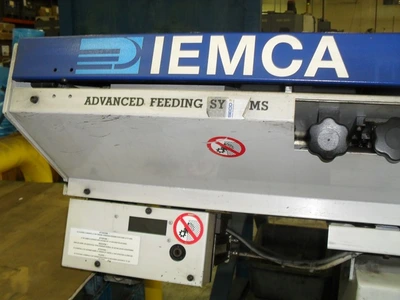

Iemca Boss 547/37 Barfeeder
Misc. Tooling Package
