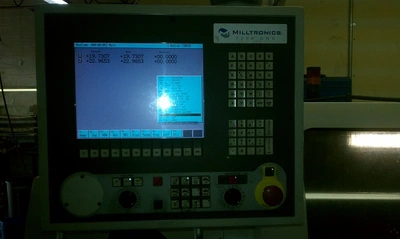

Control: 7200 CNC
Swing Over Bed: 19"
Swing Over Cross Slide: 9.25"
Centers Distance: 66.9"
X Axis Travel (Cross): 12"
Z Axis Travel (Long): 63.5"
Spindle Bore: 2.56"
Spindle Motor: 18/12 HP
Spindle Speed: 100-2,600 RPM
Spindle Nose: D1-6
Power Consumption: 50 AMPS
Machine Dimensions: 139"L x 77"W x 80"H
Machine Weight: 8,500 LBS

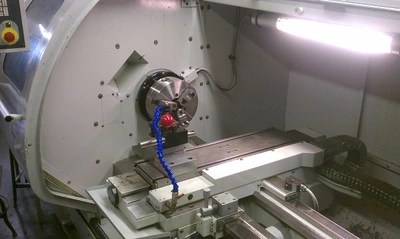

3 jaw chuck
5C collet chuck
Steady rest
Follower rest
Dorian adjustable tool post
Live center
Tailstock positioning option
