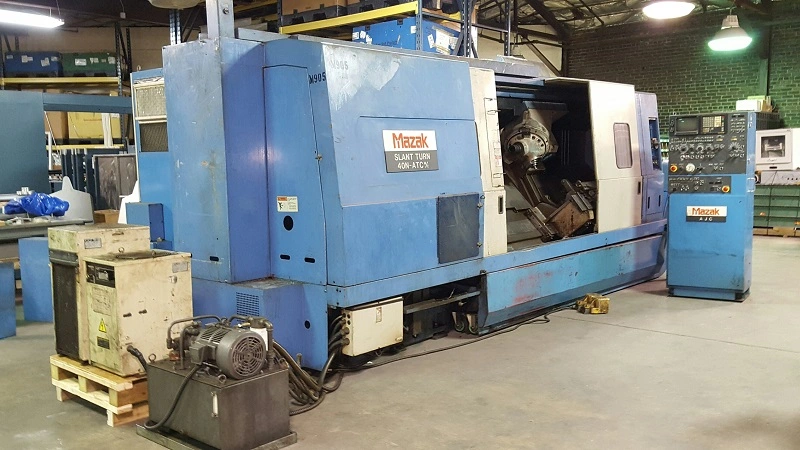

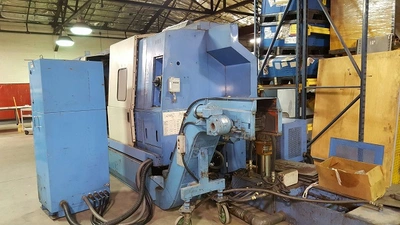

USED 1988 MAZAK SLANT

Control: Fanuc 11T
Chuck Size: 12"
Max Diameter Bar Capacity: 2.75"
Max Swing Over Bed: 21.25"
Max Turning Diameter (Chucking / Shaft): 20.25" / 14.5"
Distance Between Centers: 82"
Spindle Motor: 30 / 20 HP AC
Spindle Speed: 4 - 2200 RPM
Spindle Bore: 3.15"
Spindle Nose: A2-8
Spindle Torque: 1100 ft. lbs.
Tools: 80
Rapid Traverse Rates (X / Y): 400 / 200 IPM
Gear Ranges: 3
Milling Motor: 7.5 / 5 HP
Milling Speed: 20 - 3000 RPM
X-Axis Travel: 19.5"
Z-Axis Travel: 81.25"
C-Axis Index: .001 Degrees
Tailstock Taper: MT#4
Machine Dimensions (L x W x H): 221.6" x 158.2" x 101.9"
Machine Weight: 16,940 lbs.

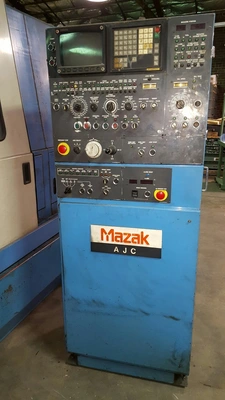

9" Monochrome CRT

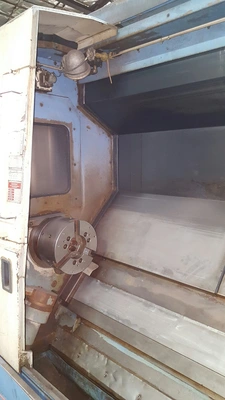

12" Hydraulic Chuck
C-Axis Milling Capability

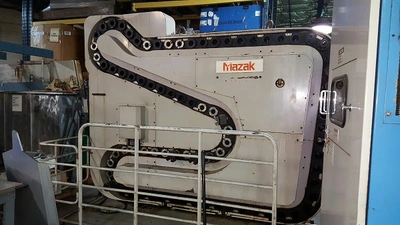

80 Tool Magazine
Programmable Tailstock Body & Quill

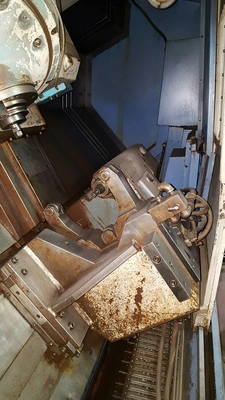

Programmable Steady Rest
Programmable Tool Eye

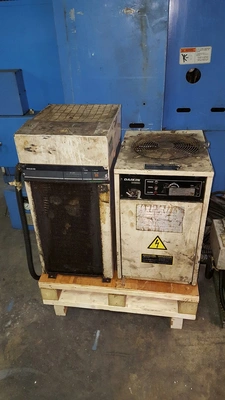

Spindle Chiller Unit

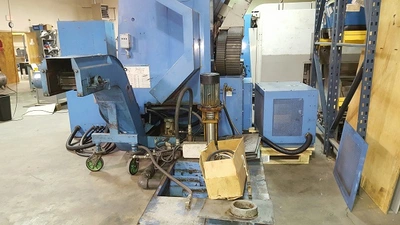

Chip Conveyor
Auto Front Door
Auto Jaw Changer
Three Gear Range Headstock
Heavy Duty Slant Bed Box Way Construction
