Control: Mazatrol T-Plus
Maximum Swing: 17.32"
Maximum Cutting Diameter: 10.00"
X Axis Travel: 7.125"
Z Axis Travel: 20.125"
Rapid Traverse Rated (X / Z): 1200 IPM / 1300 IPM
Spindle Speed: 50 ~ 5000 RPM
Spindle Nose: A2 ~ 6"
Hole Thru Spindle / Bar Capacity: 2.4" / 2.0"

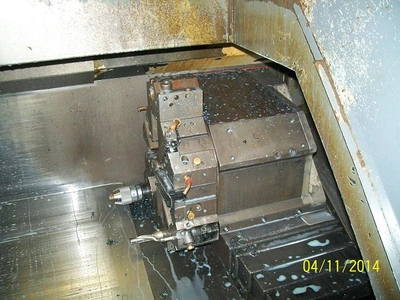

Number of Tools: 8 Position Turret
Main Motor: 20 HP
Machine Dimensions: 104" x 64" x 69"
Machine Weight: 9,900 lbs

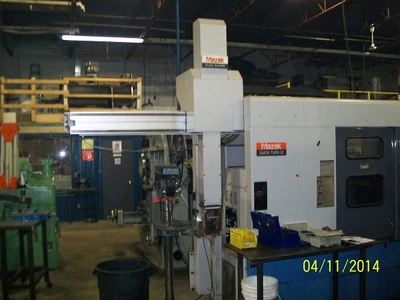

Gantry Robot Package (GL-50 with D-1 Hand)
EIA/ISO Input Function
