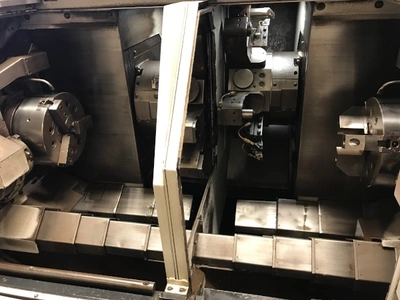

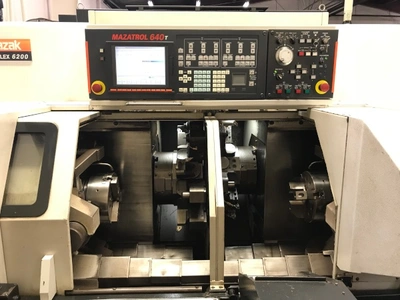

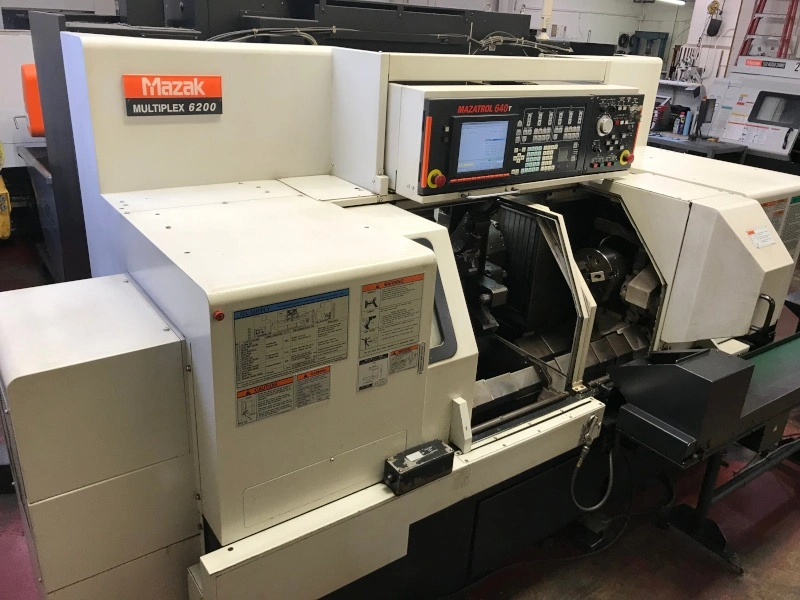

USED 2008 MAZAK MULTIPLEX
Overview
Specs
**SPECS FOR BOTH SPINDLES & TURRENTS - UNLESS NOTED**
Control: Mazatrol Fusion 640T
Swing Over Bed: 12.5"
Max Cutting Diameter: 10.24"
Max Cutting Length: 20.87"
Distance Between Spindle Faces: 46.85"
Bar Capacity: 2"
Spindle Bore: 2.4"
Spindle Nose: A2-6
Spindle Motor: 30 HP
Spindle Speed: 5,000 RPM
Spindle Indexing: Full C-Axis
X Axis Travel: 9"
Z Axis Travel (Left): 17.25"
Z Axis Travel (Right): 19.37"
Live Tooling Speed: 4,500 RPM
Live Tooling Motor: 10 HP
Turret Capacity: 12 Station (Each Turret)
Equipped With
10" 3-Jaw Hyd Chucks (Both Spindles)
Full C-Axis (Both Spindles)
Live Milling
Parts Unloader
Tool Presetter (Both Spindles)
High-Pressure Coolant (200 psi)
Chip Conveyor (Rear Discharge)
Auto Door (Left)
Turret Air Blast (Both Turrets)
CONTROL OPTIONS
Background Path Check
EIA/ISO
Synchro. Mill Tapping
Direct DWG Size Input
User Macro
600 Micro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
Cylindrical Interpolation
EIA Helical Interpolation
EIA Coordinate Rotation
EIA Helical Tap
Pitch Error Compensation
