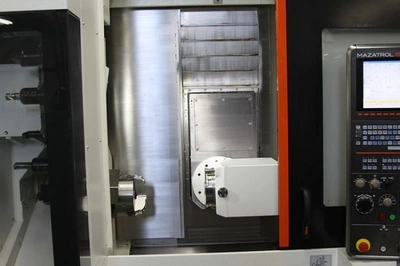

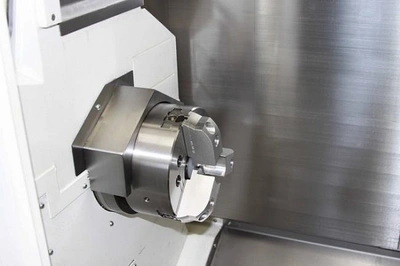

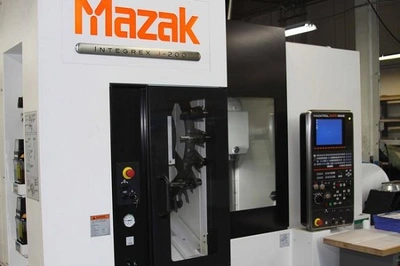

USED 2011 MAZAK INTEGREX
Overview
Specs
CAPACITY:
MAX SWING: 20.87"
SWING OVER CROSS: 20.87"
STANDARD MACHINING DIAMETER: 19.69"
MAX MACHINING LENGTH: 19.69"
TOOL CHANGER: 36 ATC
TRAVELS:
X-AXIS: 17.72"
Y-AXIS: 7.87"
Z-AXIS: 21.65"
W-AXIS: 37.40"
B-AXIS: -30 - 190 (5 DEGREE INCREMENTS)
TURNING SPINDLE:
ROTATIONS SPEED: 5,000 RPM
THROUGH HOLE DIAMETER: 2.99
BAR CAPACITY: 2.56"
MILL SPINDLE:
TOOL SHANK TYPE: KM63
MILL SPINDLE MOTOR: 7.5/3.0 KW
MILL SPINDLE SPEED: 35-12,000 RPM
Equipped With
MAZAK MAZATROL NEXUS CONTROL
HIGH PRESSURE COOLANT THROUGH SPINDLE
CHIP CONVEYOR
1 DEGREE INDEXING OPTION
UPGRADED LATHE SPINDLE HP
SOFTWARE UPGRADES
CAPTO-6 SPINDLE AND TOOL HOLDERS ($20k)
PROGRAMMABLE TAILSTOCK
8" CHUCK
***UNDER 500 HOURS!!!***
