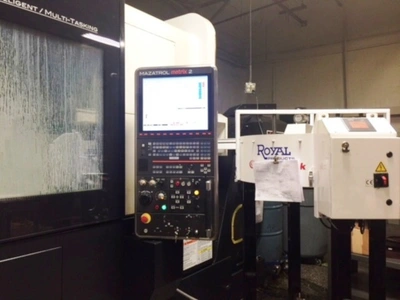

Control: MAZATROL MX2
Max Swing: 20.87"
Max Machining Diameter: 19.67
Spindel Bore: 4.4"
Max Bar Work Capacity: 4"
Max Machining Length: 33.62"
Main Chuck Size: 8"
Main Chuck Speed: 2,000 RPM
Main Chuck Motor: 15 HM
Sub Chuck Size: 6"
Sub Chuck Speed: 6,000 RPM
Sub Chuck Motor: 15 HP
B Axis Travel (Mill Spindle): 240 DEG
Mill Spindle Max Speed: 12,000 RPM
Mill Spindle Motor: 10 HP

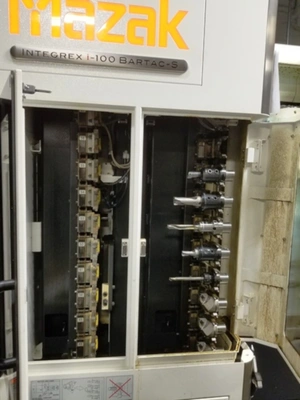

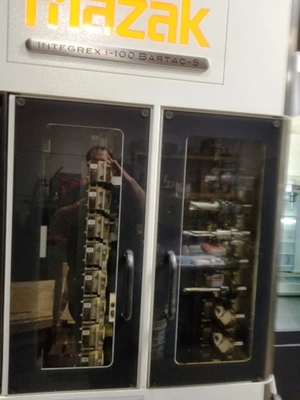

Mill Spindle Tool Magazine: 72 ATC
X Axis Travel: 17.72"
Y Axis Travel: 8.27"
Z Axis Travel: 35.59"
Global Industrial Solutions MP-250 Tool Probe System

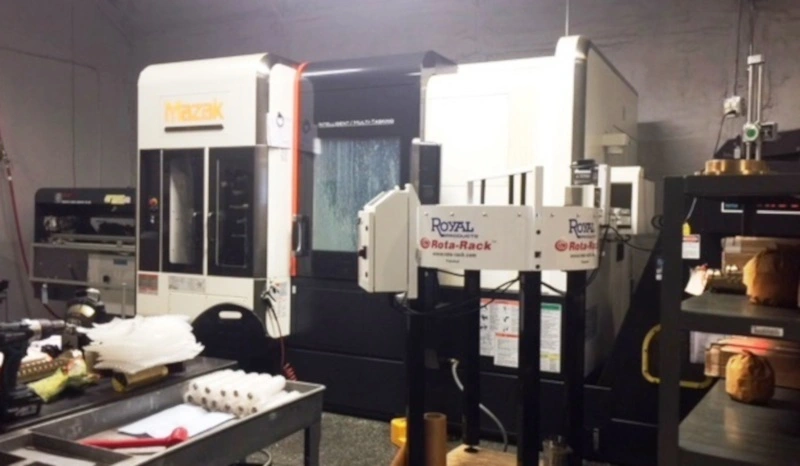

Royal Products Roto-Rack Conveyor
72 Capto Tool Mag.
Work Unloading Unit Over 2nd Spindle (4" X 5.9" X 11 LBS)
Chuck Pressure System (Programmable)
Intelligent Bar Loader Interface
Max Program Size 8MB

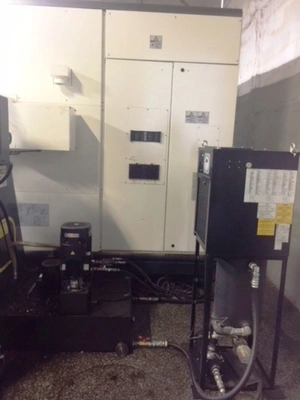

Coolant Temp Control System (Water Soluble)
2nd Spindle C Axis With C1-C2 .0001 DEG Increments
213 PSI Thru Spindle Coolant/Flood Coolant
Work Measuring Sys RMP 60

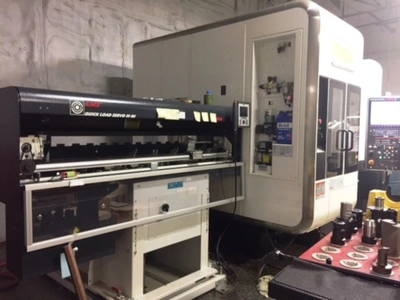

LNS Quick Load Servo III Short Magazine Bar Feeder
Mill Spindle Thru Air While Rotating

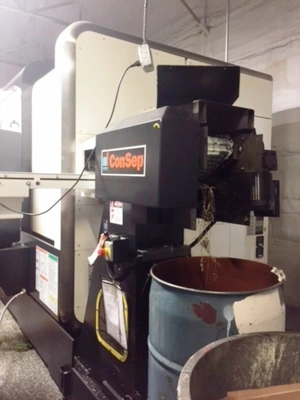

Consep Chip Conveyor Side Disposal
All Available Manuals
