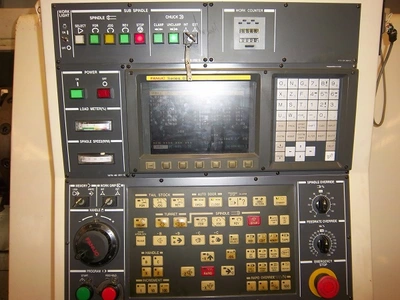

Control: Fanuc OiT
Number of Axis: 4
Max Swing: 21.6"
Max Turning Dia: 13.8"
Main Spindle Speed: 4,000 RPM
Sub Spindle Speed: 6,000 RPM
Main Spindle Motor: 15 HP
Sub Spindle Motor: 5 HP
Bar Capacity: 2.56"
Chuck Size - Main Spindle: 8"
Chuck Size - Sub Spindle: 6"
Machine Dimensions: 95"L x 65"W x 74"H
Machine Weight: 9,000 Lbs
All Availble Manuals
Full C Axis

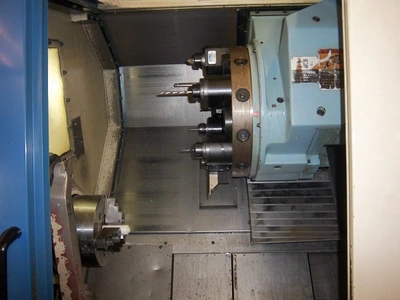

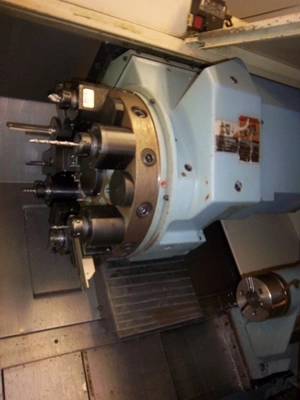

(7) Live Tool Holders
