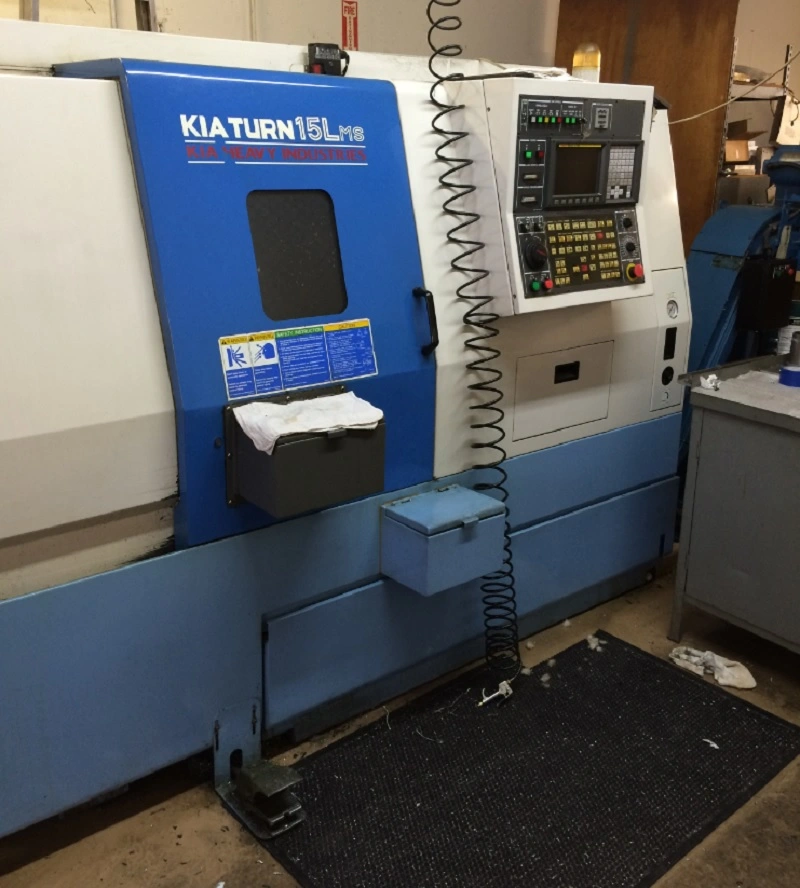

USED 2003 KIA KIATURN
Overview
Specs

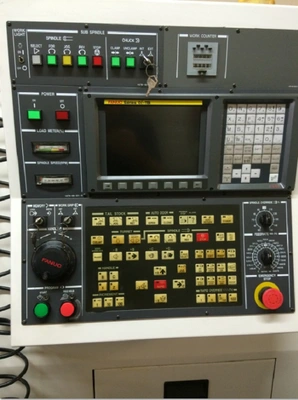

Control: Fanuc Oi-TB
Chuck Size: 6"
Max. Swing Over Bed / Over Carriage: 21.6" / 13.8"
Maximum Machining Diameter/Length: 10" / 20.8"
Maximum Bar Capacity: 1.5"
X Axis Travel: 8.7"
Z Axis Travel: 21.6"
B Axis Travel (Subspindle): 29.5"

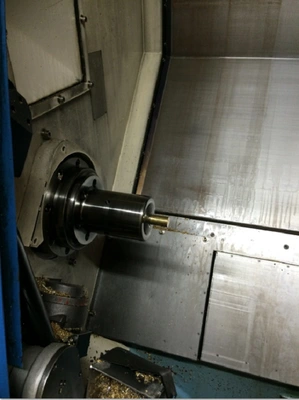

Main Spindle Nose/Subspind. Nose: A2-5" / 115 mm Flat
Spindle Speeds: 5,000 RPM
Spindle Motor: 15 HP
Subspindle Speeds / Motor: 5,000 RPM / 5 HP
Milling Tool Speeds: 4,000 RPM

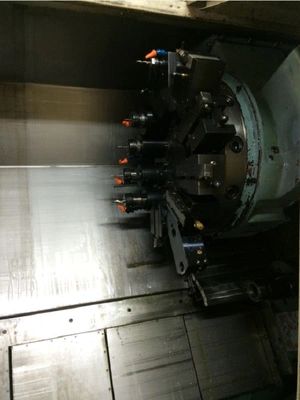

Number of Turret Positions: 12
Equipped With
Live Tooling

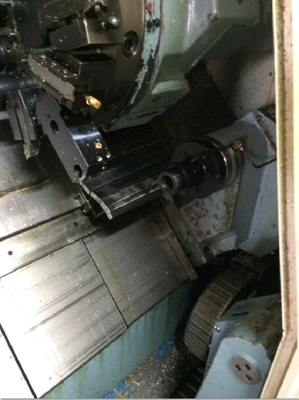

Subspindle
Chip Conveyor
Parts Catcher

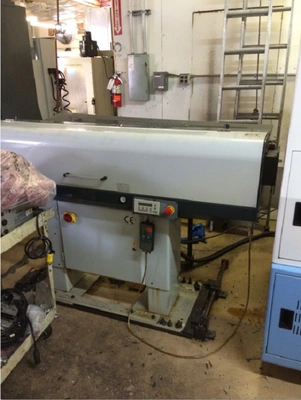

LNS Bar Feeder
