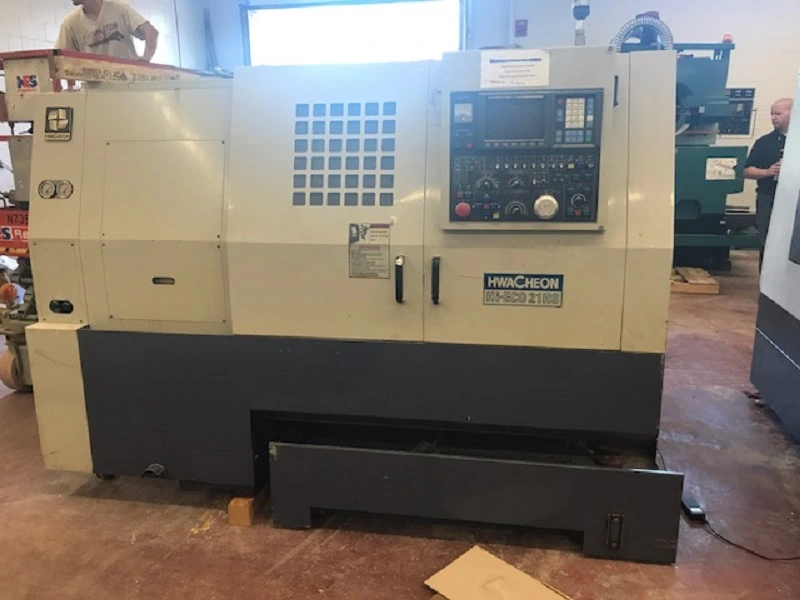

USED 1995 HWACHEON HI-ECO

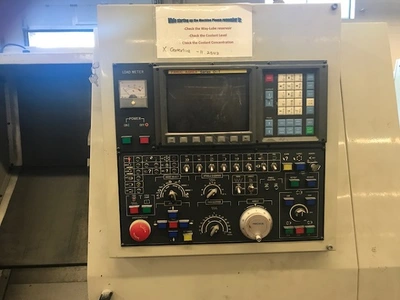

Control: Fanuc 0T
Max Swing: 22.83"
Max Turning Diameter: 11.02"
Max Turning Length: 15.74"
X-Axis Travel: 6.61"
Z-Axis Travel: 17.32"
Max Bar Capacity: 2"
Spindle Bore: 2.4"
Spindle Nose: A2-6
Spindle Speed: 40-4,000 RPM
Spindle Motor: 20 HP

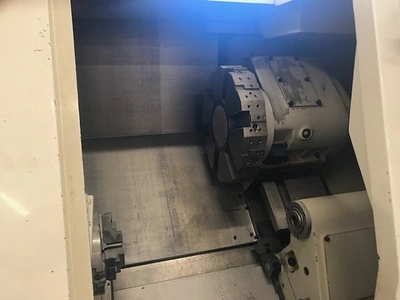

Number of Turret Positions: 12
Machine Dimensions: 101"L x 61"W x 74"H
Machine Weight: 8,900 LBS

8” Chuck (3-Jaw)
Tailstock
