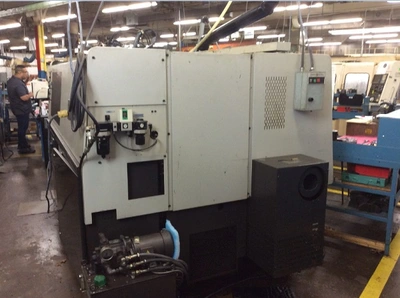

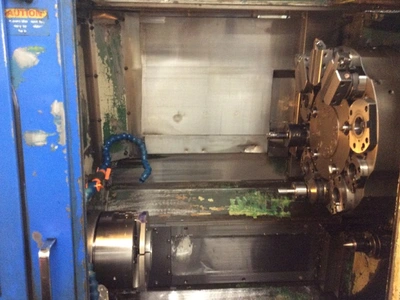

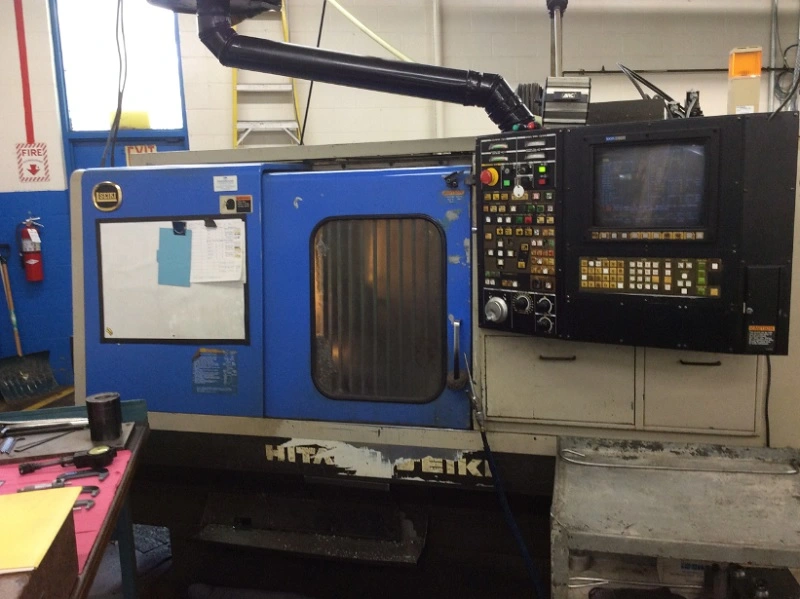

USED 1993 HITACHI SEIKI
Overview
Specs

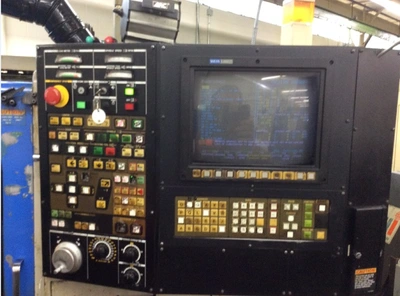

Control: SEICOS 10L
Max Swing Over Bed: 15.7"
Max Turning Diameter: 14.1"
Max Machinable Center Distance: 19.7"
Cross Travel (X-Axis): 8.5"
Longitudinal Travel (Z-Axis): 20.9"
Y Axis Travel: 3"
Number of Turrets: 1
Tool Positions: 10 Total
Toolchanger Capacity: 12
Spindle Bore: 3.15"
Bar Capacity: 2.5"
Spindle Nose: A2-8
Spindle Speed Range: 20-3600 RPM
Spindle Horsepower: 15 HP
Approximate Machine Dimensions: 130"L x 96"W x 84"H
Approximate Machine Weight: 11,000 LBS
Equipped With
10 Chuck
10 Position Turret (5 Live)
12 Position Tool Carousel
Tool Change Arm
Full C Axis
