Bar Capacity: 2.56" (65mm)
Tooling Configuration: VDI 40
Turret Positions: 12 position
X Axis Travel: 8.58" (218mm)
Y Axis Travel: ±2" (50.8mm)
Z Axis Travel: 23.62" (600mm)
C axis: 0.001 degree
Machine Dimensions L x D x H: 152" x 83" x 91"
Machine Weight: 14,330 LBS (6500kg)
Maximum Cutting diameter: 14.96" (380mm)
Maximum Cutting Length: 21.26" (540mm)
Milling Motor Power: 7.38 HP (5.5kW)
Milling RPM: 4,000 RPM
Spindle Motor Power: 20.11 HP (15kW)
Spindle Speed: 4,500 RPM
Sub Spindle Motor: 20.11 HP (15kW)
Sub Spindle Speed: 60 - 6,000 RPM
Swing: 23.62" (620mm)

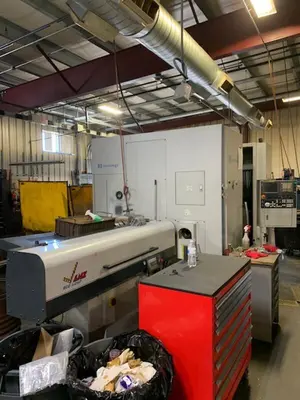

LNS Bar Feeder

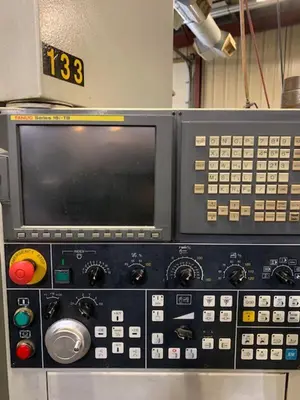

Fanuc 18i-TB CNC Control
