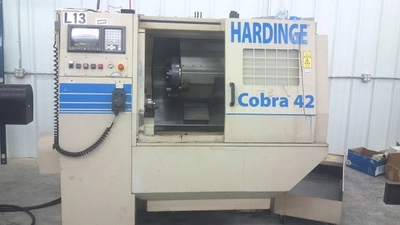

USED 1991 HARDINGE COBRA
Overview
Specs

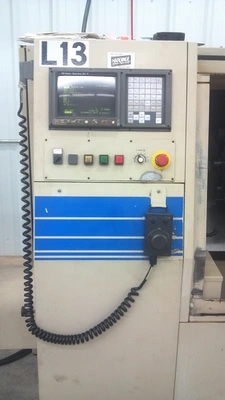

Control: Fanuc 0T
max. machining diameter: 8.25"
max. turning length w/collet: 14"
max. swing diameter: 21"
spindle nose: A2-5
max bar capacity: 1.625"
spindle motor: 7.5 HP / 10 HP
spindle speed range: 50 - 5,000 rpm

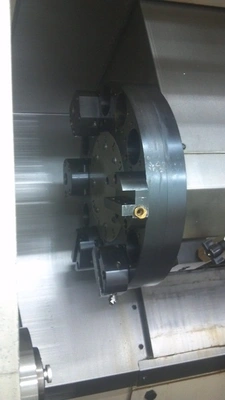

number of turret stations: 12
max. square shank tool size: 3/4"
max. round shank tool size: 1-1/4"
Dimensions (approx.): 85.4" (122.10" w/chip cnvyr)l x 66.7" w x 69.4" h
Weight (approx.): 6,000 lb
Equipped With
Misc ID & OD VDI tool holders
Coolant through the turret
5C Collet Chuck
16C Collet chuck
8" 3-Jaw Hydraulic chuck

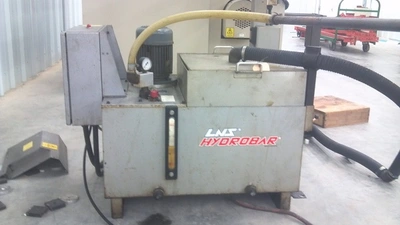

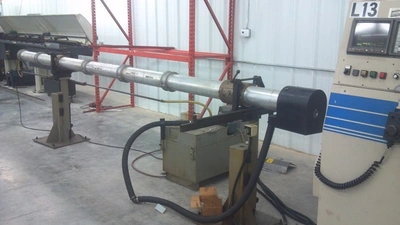

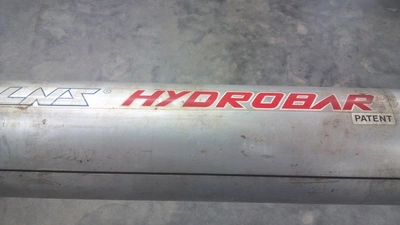

LNS HYS 6-tube Gatling Hydrodynamic Bar Feed
