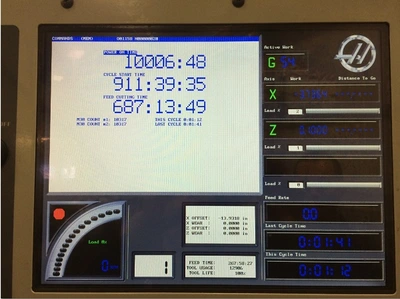

Control: Haas
Swing Over Bed: 20"
Swing Over Cross Slide: 13"
Distance Between Centers: 60"
Max Cutting Diameter: 20"
X Axis Travel: 12"
Z Axis Travel: 60"
Spindle Nose: A2-6
Spindle Bore: 3.5"
Spindle Speed: 1,800 RPM
Spindle Motor: 30 HP
Machine Dimensions: 123"L x 77"W x 87"H
Machine Weight: 7,000 LBS

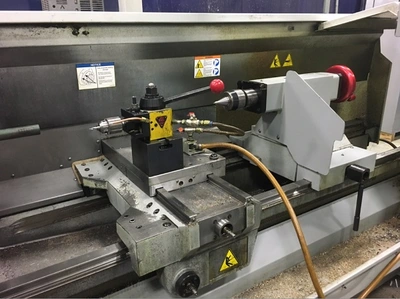

Manual tailstock
Extra-performance option 30Hp spindle motor

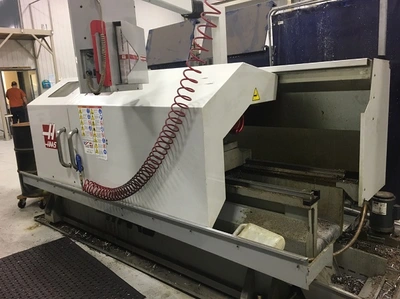

Chip enclosure kit
High-flow coolant pump kit ¾ Hp
Visual quick code
Ethernet interface
Spindle orientation
Ridgid tapping

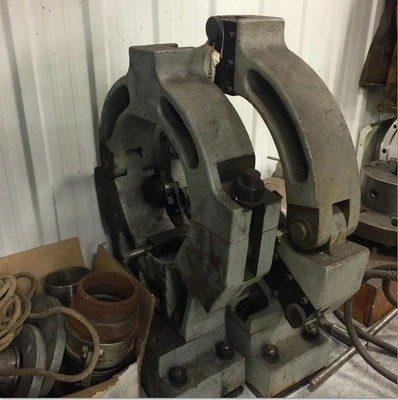

9.5 Manual steadyrest

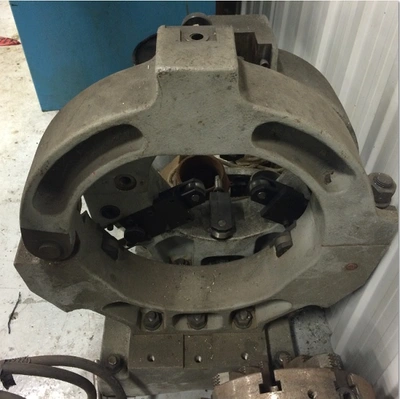

13 Manual steadyrest
12 3 jaws chuck
12 4 jaws independent chuck

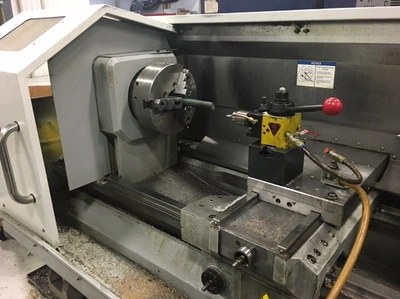

Dorian quick-change tool post
Turning & facing holder (10 times)
5c collet holder (2 times)
1 ¼ Extra-heavy duty boring bar holder (4 times)
Morse taper holder (1 time)
Drill chuck holder (1 time)
