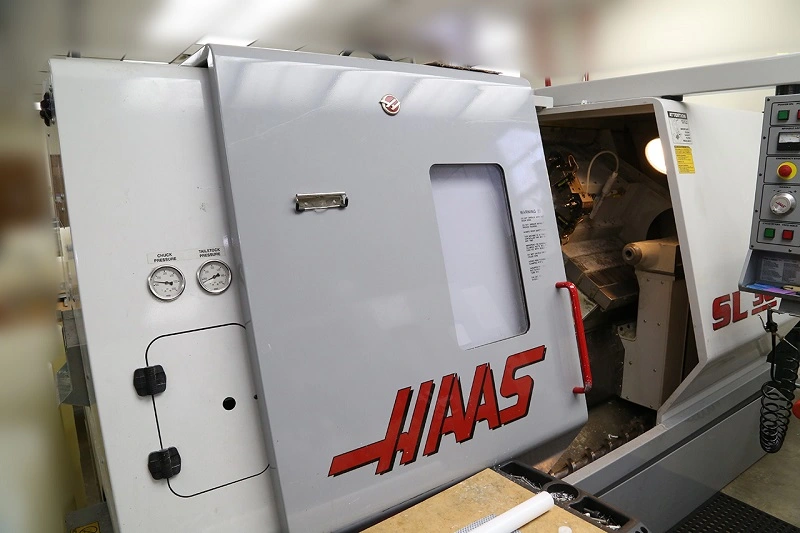

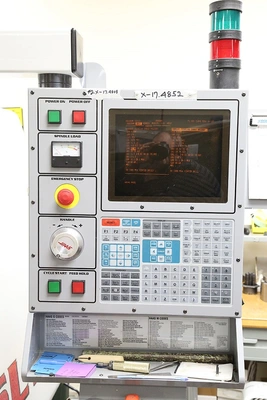

Control: Haas
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Nose: A2-6
Spindle Bore: 3.5"
Maximum Bar Capacity: 3"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP

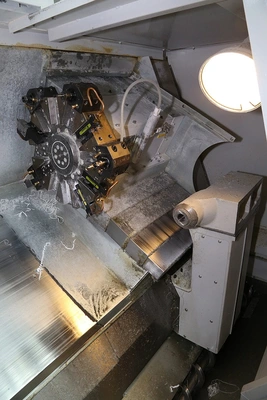

Turret Type: 12 Positions
Tailstock Travel: 33.5"
Machine Dimensions LxWxH: 161"x77"x74"
Machine Weight: 16,000 Lbs
Tool Presetter System

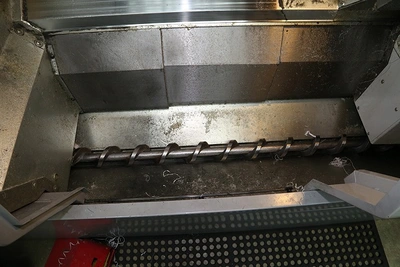

Chip Auger
Floppy Disc Drive
Quickcode
1MB Memory
Tailstock
Ethernet Interface

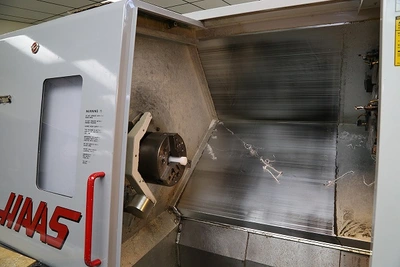

10" 3-Jaw Chuck
