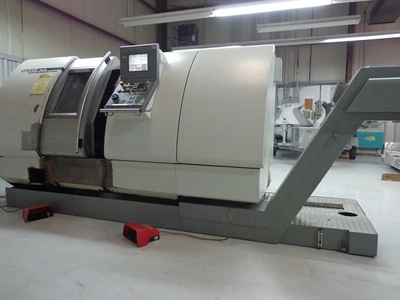

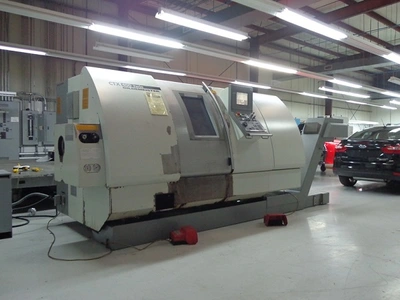

USED 2002 GILDEMEISTER CTX

Control: HEIDENHAIN TURN PLUS Pilot 4290 Version 6.1
Max Swing: 22" / 570 mm
Turning length: 25" / 635 mm
Swing Over Cover: 16.54" / 420 mm
Spindle bore: 3.11" / 79 mm
Spindle turning speed range: 25 - 5000 U/min
Spindle motor: 28/21 kW
Subspindle - speed range: 25 - 5000 U/min
Sub Spindle motor: 12/9 kW
X-axis Travel: 8.6" / 220 mm
Y-Axis Travel: 3"/ +- 79 mm
Z-Axis Travel: 25" / 635 mm

Y Axis
Full C Axis on Both Spindles
Tool Presetter
Parts Catcher

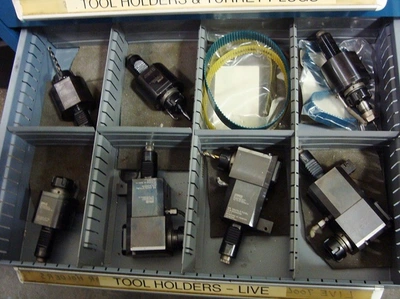

Large Quantity of Live Tooling

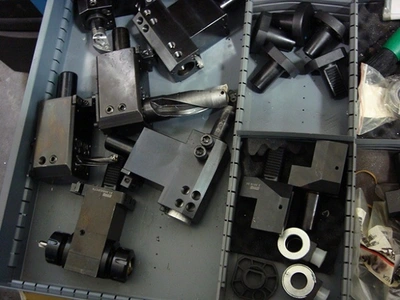

Static Tooling

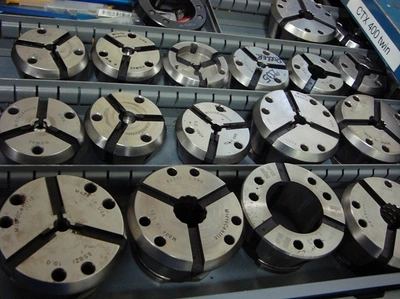

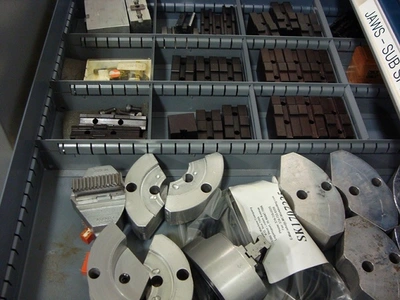

Collets and Holders
Chucks
Chip Conveyor

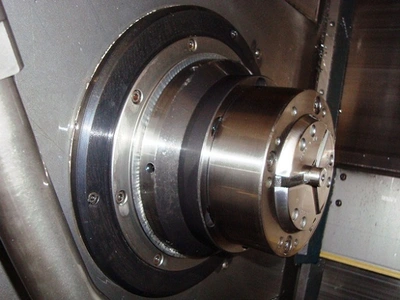

(2) Collet Chucks

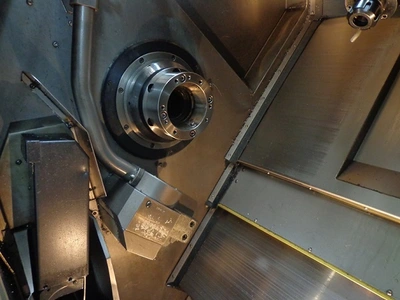

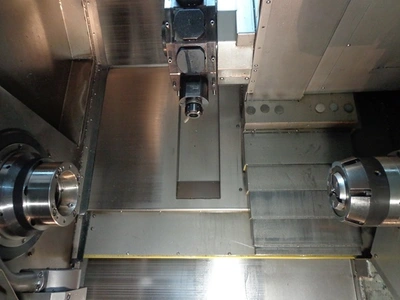

Sub Spindle
Full Set of Manuals
