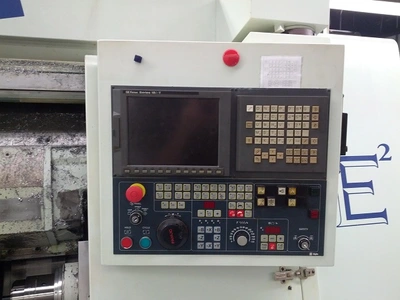

Control: Fanuc 18i-T
Bar Capacity: 2.625"
Max. Mach. Dia: 9.842"
Max. mach. length: 19.685"
Max. Swing: 20.472"
Main Spindle Speed: 4000 RPM
Main Spindle Nose: A2-6
Main Spindle Motor HP: 30 HP
Sub Spindle Speed: 4000 RPM
Sub Spindle Nose: A2-5
Sub I.D. drawtube: 1.692"
Sub Spindle Motor: 7 HP
No. of Turret Stations: 12
Live Tool Turret Positions: 12
Live Tool Speeds: 3000 RPM
Live Tool Motor: 5 HP
Total Machine Dimensions: L158" x W78" x H85"
Machine Weight: 12,000 LBS
Chip Conveyor
Bar Feeder
