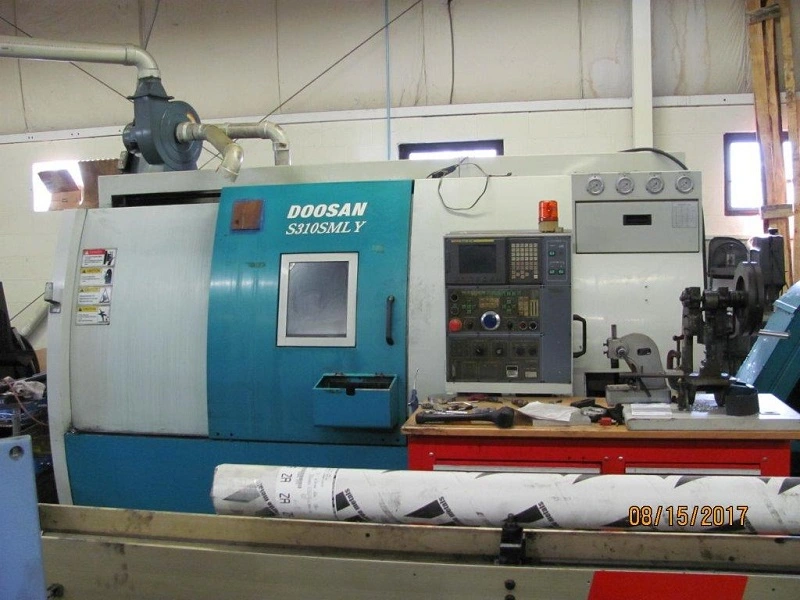

USED 2002 DOOSAN S310SMLY

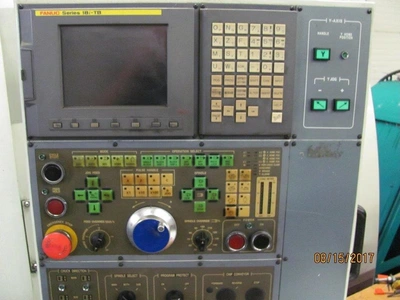

Control: Fanuc 18i-TB
Swing Over Bed: 19.7"
Distance Beteween Centers: 35.8"
X Axis Travel: 7.87"
Z Axis Travel: 29.53"
Y Axis Travel: 3.17"
B Axis Sub Spindle Travel: 26"
Main & Subspindle Speeds: 4,500 RPM
Main Spindle Nose: A2-8
Subspindle Nose: A2-5
Main Spindle Motor: 20 HP
Subspindle Motor: 7.5 HP
Max Bar Capacity: 2.6"
Number of Turret Positions: 12
Live Tool Speed: 3,000 RPM
Live Tool Motor: 4 HP
Machine Dimensions: 132"L x 73"W x 76"H
Machine Weight: 13,700 LBS

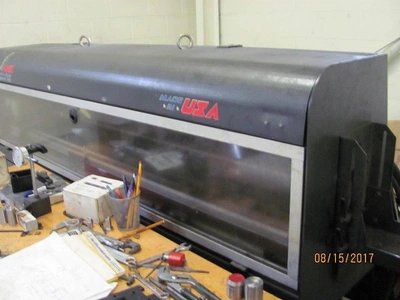

LNS Barfeeder
Subspindle
Live Tooling
Y Axis
Chip Conveyor
