Control: Mitsubishi
Swing Over Bed: 27.5"
Swing Over Saddle: 18.9"
Maximum Machining Diameter: 12.4"
Maximum Machining Length: 41.4"
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Spindle Nose/Bore/Bar Capcity: A2-8"/4.02"/3.58"
Spindle Speed: 30 - 3,000 rpm
Spindle Motor: 35 HP
Turret Type: 12 Position Turret
Machine Dimensions: 153" x94" x81"H
Machine Weight: 18,970 lbs.

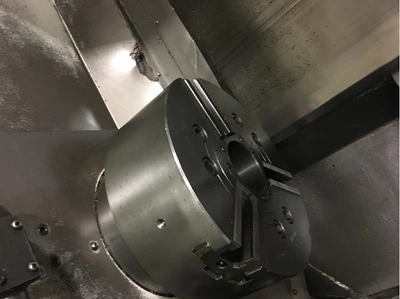

12" Hydraulic Chuck
Fully Programmable Tailstock
Boxed Way Design
RS-232C Port for DNC Interface
Standard Coolant System
Chip Conveyor
Geared Head Design
