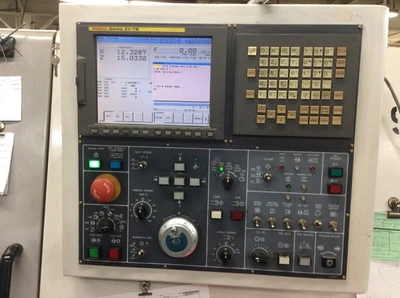

Control: Fanuc 21i-TB
Swing Over Bed: 23"
Swing Over Cross Slide: 14.5"
Max Turning Diameter: 15.7"
Max Turning Length: 25"
X Axis Travel: 11.1"
Z Axis Travel: 26.8"
Bar Capacity: 4"
Spindle Bore: 4.53"
Spindle Speed: 2,800 RPM
Spindle Motor: 35 HP

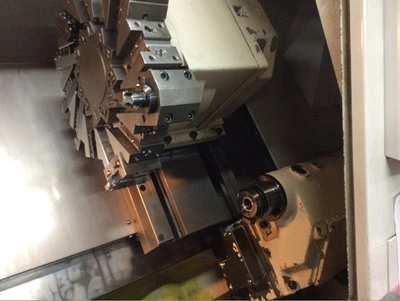

Number of Turret Stations: 12
Machine Dimensions: 135"L x 68"W x 72"H
Machine Weight: 16,000 LBS
Tailstock
Chip Conveyor
Tool Probe

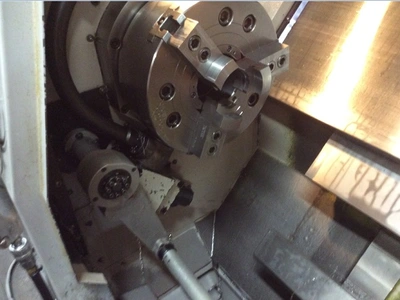

15" 3-Jaw Chuck
