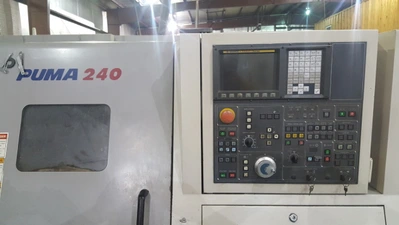

Control: Daewoo Fanuc I Series (21T)
Swing Over Bed: 21.7"
Maximum Turning Diameter: 13.8"
Maximum Turning Length: 21.6"
Bar Capacity: 2.6"
Spindle Nose: A2-6
Spindle Speed Range: 45 - 4500 RPM
Spindle Torque: 135 ft./lbs.
Spindle Motor: 25 HP
X-Axis Travel: 9.5"
Z-Axis Travel: 22.8"
Turret Capacity: 12 Stations
Tailstock Taper: 4MT
Tailstock Stroke: 3.15"
Approximate Machine Weight: 9200 LBS
Parts Catcher
Chip Conveyor
8" 3-Jaw Chuck

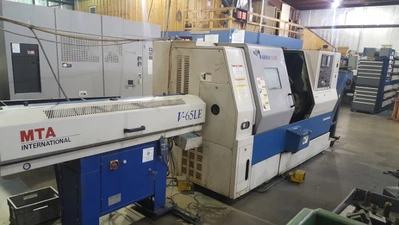

MTA International V-65LE Bar Feeder
6ea OD blocks
6ea sets of Wedge blocks for turn tools
Rotary quill for tail stock
